EQUIPMENT US Site

1

1126147

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Tube, Spreader Bar, Black	1	1
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
2	Cover, Spreader Bar (16-20" W)	1	1
9	Plug Button, Black (1")	1	2
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
8	Locknut (1/4-20)	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2

Kit, Spreader Bar Assembly (12"-16" Wide)

1

A ,B

Create/add to Wishlist

10

1127154

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

NLA - Kit, Back Cane Assembly with Hardware (12"-15" Back Height)

1

N/A

C

Create/add to Wishlist

10

1127155

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

NLA - Kit, Back Cane Assembly with Hardware (16"-19" Back Height)

1

N/A

C

Create/add to Wishlist

10

1127156

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

Kit, Back Cane Assembly with Hardware (20"-22" Back Height)

1

C

Create/add to Wishlist

11

1135505

Package, Foam Hand Grip (4" L)

10

1

$40.00

Create/add to Wishlist

16

1126148

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
18	Locknut (1/4-20)	1	4
19	Folding Hinge Assembly	1	2
20	Cover, Spreader Bar w/ Headrest Bracket	1	1
21	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
22	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
23	Anti-Rattle (1")	1	2
24	NLA - Insert, Spreader Bar Connector, Black	1	2
25	NLA - Tube, Spreader Bar w/ Headrest Bracket, Black	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
3	Locknut (1/4-20)	1	4
4	Folding Hinge Assembly	1	2
5	Cover, Spreader Bar w/ Headrest Bracket	1	1
6	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
7	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Anti-Rattle (1")	1	2
9	NLA - Insert, Spreader Bar Connector, Black	1	2
10	NLA - Tube, Spreader Bar w/ Headrest Bracket, Black	1	1

NLA - NLA - Kit, Spreader Bar with Headrest Bracket (12"-16" Adj. Width)

1

N/A

D

Create/add to Wishlist

26

1028513

NLA - Screw, Socket Head (#10-32 x 1-1/4")

1

N/A

Create/add to Wishlist

27

1126103

NLA - Release Handle Assembly w/ Cable

1

N/A

Create/add to Wishlist

28

1086207

Nut, Square (#10-32)

1

$8.00

Create/add to Wishlist

29

1133698

Grip, Foam Hand (9" L)

1

2

Create/add to Wishlist

30

1082620

NLA - Handle, Push w/ Foam Grip, Black (12" W)

1

N/A

Create/add to Wishlist

30

1082621

NLA - Handle, Push w/ Foam Grip, Black (13" W)

1

N/A

Create/add to Wishlist

30

1082622

NLA - Handle, Push w/ Foam Grip, Black (14" W)

1

N/A

Create/add to Wishlist

30

1082623

Handle, Push w/ Foam Grip, Black (15" W)

1

Create/add to Wishlist

30

1082624

Handle, Push w/ Foam Grip, Black (16" W)

1

Note Code	Definition
A	Plug Buttons are not required when stroller handles are used.
B	Includes items 2-9
C	Includes items 11-15
D	Includes items 17-25

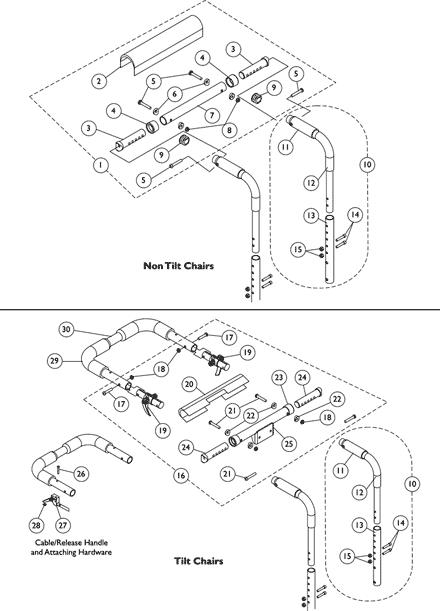

Canes - Back - Spreader Bar and Push Handle - ADJASBA - After 10/26/04
