Front Riggings - Center Mount Rigging Mtg. Hdwr. (CTMTJ & CTMT) - After 10/26/04

Print this page

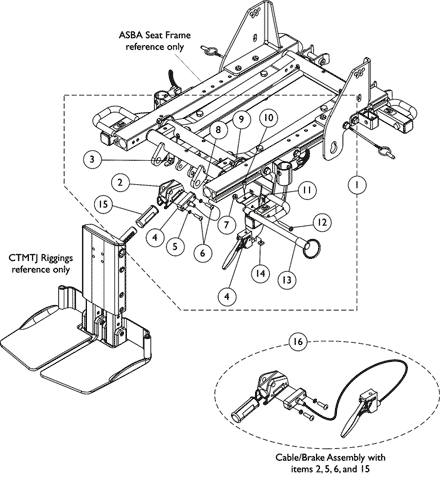

Center Mount Rigging Mounting Hardware (CTMTJ and CTMT)

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1127160	NLA - Kit, Center Mount Rigging Mounting Hardware	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1113389	Housing, Ratchet	1	1	$73.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025736	Locknut (1/4-20)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1113622	Cable/Brake Assembly	1	1	$51.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	10141X012	NLA - Washer, Lock (3/16 x 5/16 x 1/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	40163X008	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025731	Locknut (#10-32)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1071736	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1056087	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1127161	NLA - Bracket, Cable Release Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026107	Screw, Phillips Pan Head (#10-32 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1113375	NLA - Pin, Quick Release (5" Long)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1086207	Nut, Square (#10-32)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1113383	Bearing, Glide	1	2	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1121079	Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing	1	1	$116.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-15
B	Includes Cable Assembly and items 2,5,6, and 15

Catalog Literature

Parts Books for Pronto® M71™ jr. with SureStep™
