EQUIPMENT US Site

1

8881102858

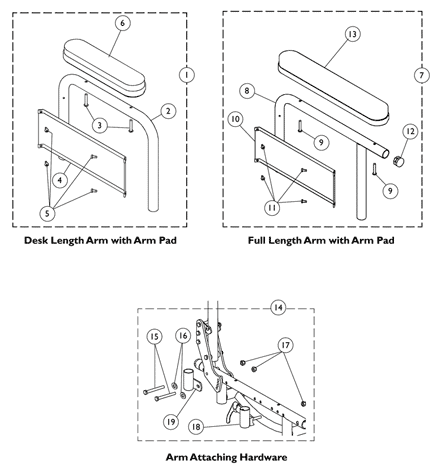

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	Pad, Arm, Desk Length	1	1
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	Pad, Arm, Desk Length	1	1
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	Pad, Arm, Desk Length	1	1

NLA - Fixed Height Desk Length Arm Assembly - Right

1

N/A

A ,B

Create/add to Wishlist

6

8881053578

Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair)

2

1

$53.00

A

Create/add to Wishlist

1

8881102859

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	NLA - Arm Pad, Desk Length w/ Law Label	1	1
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	NLA - Arm Pad, Desk Length w/ Law Label	1	1
2	NLA - Tube, Arm, Desk Length, Black - Right/Left	1	1
3	Package, Screw Phillips Pan Head (#10-32 x 1-1/8")	2	1
4	NLA - Guard, Clothing, Desk Length	1	1
5	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
6	NLA - Arm Pad, Desk Length w/ Law Label	1	1

NLA - Fixed Height Desk Length Arm Assembly - Left

1

N/A

A ,B

Create/add to Wishlist

6

8881053578

Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair)

2

1

$53.00

A

Create/add to Wishlist

7

8881102864

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Arm Base, Full Length, Black - Right	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
13	NLA - Pad, Arm, Full Length	1	1
8	NLA - Arm Base, Full Length, Black - Right	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
13	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	NLA - Arm Base, Full Length, Black - Right	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
13	NLA - Pad, Arm, Full Length w/ Law Label	1	1

NLA - Fixed Height Full Length Arm Assembly - Right

1

N/A

A ,C

Create/add to Wishlist

13

8881053577

Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair)

2

1

$53.00

A

Create/add to Wishlist

7

8881102865

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	NLA - Arm Base, Full Length, Black - Left	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
8	NLA - Arm Base, Full Length, Black - Left	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
13	NLA - Pad, Arm, Full Length w/ Law Label	1	1
8	NLA - Arm Base, Full Length, Black - Left	1	1
9	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
10	NLA - Guard, Clothing, Desk Length	1	1
11	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
12	Plug Button, Black (7/8")	1	1
13	NLA - Pad, Arm, Full Length w/ Law Label	1	1

NLA - Fixed Height Full Length Arm Assembly - Left

1

N/A

A ,C

Create/add to Wishlist

13

8881053577

Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair)

2

1

$53.00

A

Create/add to Wishlist

14

1083083

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Socket, Arm, Front - Right	1	1
12	Socket, Arm, Front - Left	1	1
13	Socket, Arm, Rear - Right/Left	1	2
14	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
15	Washer (1/4 x 1/2 x 1/16")	1	4
16	Nut, Hex (1/4-28)	1	6
15	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
16	Washer (1/4 x 1/2 x 1/16")	1	4
17	Nut, Hex (1/4-28)	1	6
18	Socket, Arm, Front - Right	1	1
18	Socket, Arm, Front - Left	1	1
19	Socket, Arm, Rear - Right/Left	1	2

Kit, Arm Attaching Hardware (Pair)

1

$170.00

D

Create/add to Wishlist

15

1055350

Screw, Hex Head (1/4-28 x 2-1/4")

1

4

$8.00

Create/add to Wishlist

16

1026907

Washer (1/4 x 1/2 x 1/16")

1

4

$7.20

Create/add to Wishlist

17

1085111

Nut, Hex (1/4-28)

1

6

$10.00

Create/add to Wishlist

18

1083081

Socket, Arm, Front - Right

1

$39.00

Create/add to Wishlist

18

1083082

Socket, Arm, Front - Left

1

$39.00

Create/add to Wishlist

19

1048835

Socket, Arm, Rear - Right/Left

1

2

$18.00

Note Code	Definition
A	Specify upholstery color U67 Black when ordering
B	Includes items 2-6
C	Includes items 8-13
D	Includes items 15-19. Contains enough hardware for both arms

Arms - Fixed Height
