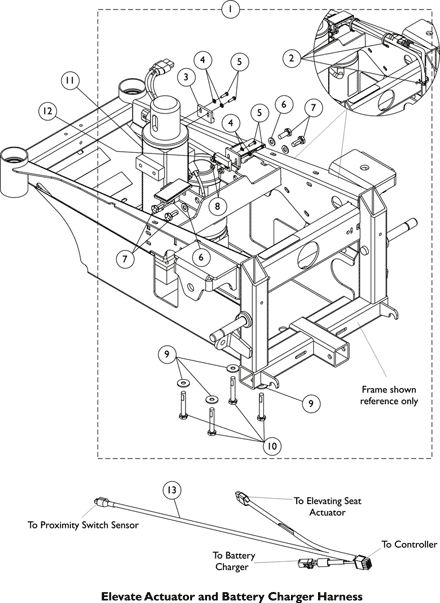

Elevating Seat Actuator, Proximity Sensor, and Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1127303

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Tie Wrap (5-5/8" L)	1	4
3	Sensor, Actuator Switch	1	1
4	NLA - Washer, Internal Tooth Lock (#4-40)	1	4
5	Screw, Phillips Pan Head (#4-40 x 7/16")	1	4
6	Washer (1/4 x 1/2 x 1/16")	1	4
7	Screw, Socket Head (1/4-20 x 5/8")	1	4
8	Nut, Hex Keps (#4-40)	1	2
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Screw, Hex Head w/ Patch (1/4-20 x 1-5/8")	1	1

NLA - Kit, Elevating Actuator Hardware

N/A

Create/add to Wishlist

1024001

Sensor, Actuator Switch

$21.00

Create/add to Wishlist

1127262

Actuator Motor, Elevating Pivot

$425.00

Create/add to Wishlist

1127290

Sensor, Proximity Switch (7" L)

$45.00

Create/add to Wishlist

1127260

Harness, Actuator Sensor and Battery Charger

$116.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-10

Catalog Literature

Parts Books for Pronto® M50™/ M51™ with SureStep® (After 1/19/05) Pronto® M61™ with SureStep®
