Canes - Back - Back Frame - Slide Blocks & Sleeves - Contoura Seating

Print this page

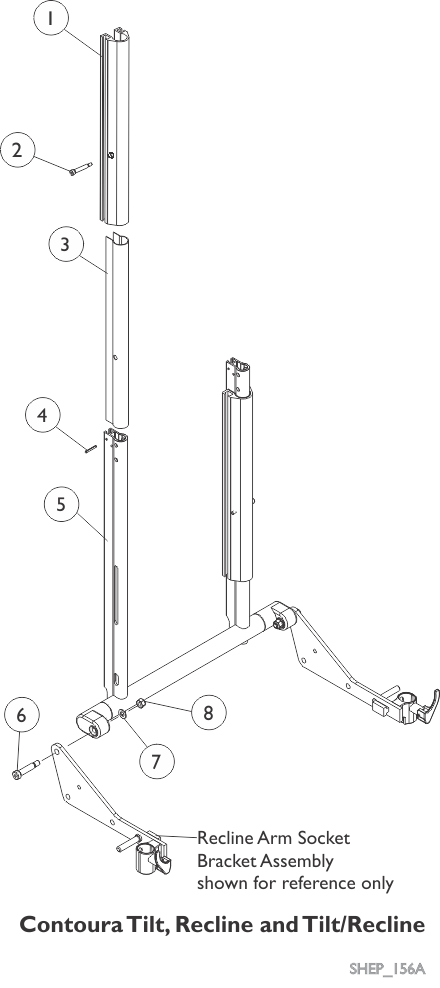

Back Frame, Slide Blocks and Sleeves

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1122263	Block, Slide Back - Left	1	1	$74.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1124693	Block, Slide Back - Right	1	1	$74.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1000212	Screw, Shoulder Hex Socket (1/4 x 1-1/4", #10-24)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1122464	Sleeve, Back Slide (15-1/4" L)	1	2	$28.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1119847	Pin, Roll (1/8 x 1")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1131422	Frame, Back, Contoura, Black (16" W)	1	1	$339.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1122459	Frame, Back, Contoura, Black (18" W)	1	1	$367.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1122463	Frame, Back, Contoura, Black (20" W)	1	1	$373.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1131423	Frame, Back, Contoura, Black (22" W)	1	1	$382.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1131424	Frame, Back, Contoura, Black (24" W)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1062604	Screw, Shoulder Hex Socket (3/8 x 1-1/4", 5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026158	Locknut (5/16-18)	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
