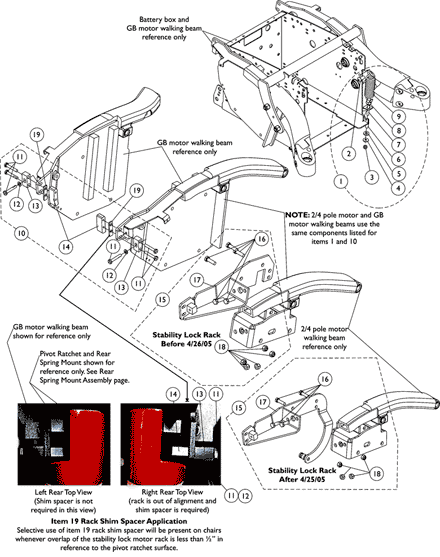

Stability Lock & Battery Box-To-Walking Beam Extension Spring Assembly
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1119780 | NLA - Extension Spring Assembly, Battery Box - Walking Beam | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1022866 | NLA - Screw, Socket Button Head (3/8-16 x 3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1025736 | Locknut (1/4-20) | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | 1026900 | Washer (1/4 x 23/32 x 1/16") | 1 | 1 |
$1.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1106225 | NLA - Washer, Nylon (5/16 x 11/16 x 1/8") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1117229 | NLA - Sleeve, Lock Nylon | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1113248 | NLA - Rod, Spring Connector | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1025736 | Locknut (1/4-20) | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 1117196 | NLA - Spring, Extension (1-1/4 x 4-3/4" L) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 1117230 | NLA - Hardware, Stability Lock | 2 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1117224 | NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/2") | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 2 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1117244 | NLA - Block, Stability Lock Clamp | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 1121250 | NLA - Rack, Motor | 1 | 2 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1120372 | NLA - Rack, Stability Lock with Hardware - Right | 1 | 1 | N/A | C ,E |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1120373 | NLA - Rack, Stability Lock with Hardware - Left | 1 | 1 | N/A | C ,E |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1133080 | NLA - Rack, Stability Lock with Hardware - Right | 1 | 1 | N/A | C ,F |
Create/add to WishlistCreate/add to Wishlist |
| 15 | 1133081 | NLA - Rack, Stability Lock with Hardware - Left | 1 | 1 | N/A | C ,F |
Create/add to WishlistCreate/add to Wishlist |
| 16 | 1003548 | Screw, Hex Head (5/16-18 x 1") | 1 | 5 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 1113314 | NLA - Rack, Stability Lock - Right | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1113315 | NLA - Rack, Stability Lock - Left | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1133076 | NLA - Rack, Stability Lock - Right | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1133077 | NLA - Rack, Stability Lock - Left | 1 | 1 | N/A | F |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1026158 | Locknut (5/16-18) | 1 | 5 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
| 19 | 1121431 | NLA - Spacer, Rack Shim, Black | 1 | 2 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2-9. |
| B | Includes items 11-14. |
| C | Includes items 16-18. |
| D | Rack Shim Spacers are not present on all chairs. See pictorial for reference. |
| E | Before 4/26/05. |
| F | After 4/25/05. |
| G | No longer available. To order replacement use part number 1117230 (Item 10) |
