Walking Beam Assembly (Before 4/26/05)

Print this page

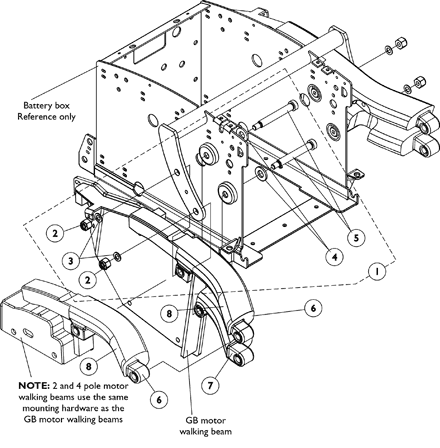

Walking Beam Assembly Before 4/26/05

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1120355	NLA - Hardware, Walking Beam Mounting	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1065216	Locknut (3/8-16)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1065214	Washer, Flat (3/8 x 11/16 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1003766	NLA - Washer, Plain (1/2 x 1 x 1/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1113246	NLA - Screw, Shoulder Hex Socket Head (1/2 x 3-1/4", 3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881113144	NLA - Beam, Walking without Model Decal GB - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881113145	NLA - Beam, Walking without Model Decal GB - Left	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881113158	NLA - Walking Beam w/o Model Decal, 2 and 4 Pole Motor - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881113159	NLA - Walking Beam w/o Model Decal, 2 and 4 Pole Motor - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	8881113218	NLA - Walking Beam, Lower - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	8881113219	NLA - Walking Beam, Lower - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1117207	NLA - Decal, TDX 3, Yellow	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1117206	NLA - Decal, TDX 4, Yellow	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1117205	NLA - Decal, TDX 5, Yellow	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5
B	Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
