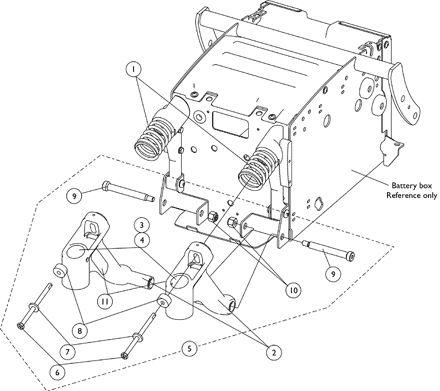

Swing Arm Assembly - Rear (Before 4/26/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1113186

Spring, Light Yellow, Non-Heavy Duty

$16.00

A ,H

Create/add to Wishlist

1113187

Spring, Sunny Yellow, Heavy Duty

$17.00

B ,I

Create/add to Wishlist

1125645

NLA - Spring, Dark Yellow, EXTRA Heavy Duty

N/A

G ,G1 ,J

Create/add to Wishlist

8881113182

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
11	NLA - Plate, Name, Patent Numbers	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	NLA - Plate, Name, Patent Numbers	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	NLA - Plate, Name, Patent Numbers	1	1

NLA - Kit, Swing Arm, Rear - Right

N/A

C ,E ,F

Create/add to Wishlist

8881113183

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
11	Decal, Transportation	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	Decal, Transportation	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	Decal, Transportation	1	1

NLA - Kit, Swing Arm, Rear - Left

N/A

C ,E ,F

Create/add to Wishlist

1120350

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	NLA - Screw, Hex Head w/ Patch (5/16-18 x 4-3/4")	1	2
7	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
8	NLA - Damper, Yellow Polyurethane	1	2
9	NLA - Screw, Shoulder Hex Socket Head (1/2 x 3-1/2", 3/8-16)	1	2
10	Locknut (3/8-16)	1	2

NLA - Kit, Swing Arm Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used for 300 Lb. weight limit and below without a vent tray option. Standard on TDX3 and TDX4. Standard on TDX5 before 10/20/03 and then the Heavy Duty Spring became Standard after 10/19/03.
B	Used for 301 Lb. and above weight limits without a vent tray. Upgrade on TDX3 and TDX4. Upgrade on TDX5 before 10/20/03 and then became Standard after 10/19/03.
C	Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
D	Includes items 6-10
E	Includes items 3, 4 and 11
F	Patent numbers decal is adhered to the right swing arm and the transportation label is adhered to the left swing arm
G	Used for all weight limits with a vent tray option. Before 7/15/04 2GTR systems w/ vent used the Heavy Duty Spring part # 1113187. It is recommended to replace with 2 ea. EXTRA Heavy Duty Springs for 2GTR systems ordered w/ a vent before 7/15/04
G1	All Formula TRE Systems w/ vents introduced on 7/15/04 use the EXTRA Heavy Duty Springs.
H	Spring color changed from Sunny Yellow to Light Yellow 3/22/10. It is recommended to order springs in pairs to match color and maintain equal spring tension on both sides of the wheelchair
I	Spring color remains the same for this part number. It is recommended to order springs in pairs to maintain equal spring tension on both sides of the wheelchair
J	Spring color changed from Sunny Yellow to Dark Yellow 3/22/10. It is recommended to order springs in pairs to match color and maintain equal spring tension on both sides of the wheelchair

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
