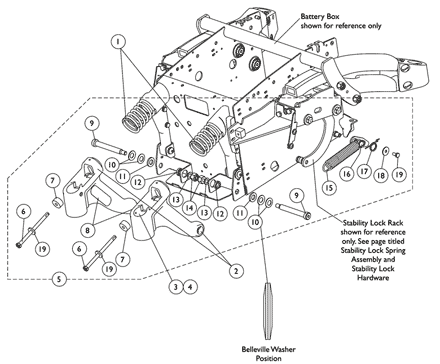

Swing Arm Assembly - Rear (After 4/25/05) w/ TCD Assist Spring - 4-Pole Motors

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1113186

Spring, Light Yellow, Non-Heavy Duty

$16.00

A ,H

Create/add to Wishlist

1113187

Spring, Sunny Yellow, Heavy Duty

$17.00

B ,I

Create/add to Wishlist

1125645

NLA - Spring, Dark Yellow, EXTRA Heavy Duty

N/A

G ,J

Create/add to Wishlist

8881113182

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
11	NLA - Plate, Name, Patent Numbers	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	NLA - Plate, Name, Patent Numbers	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	NLA - Plate, Name, Patent Numbers	1	1

NLA - Kit, Swing Arm, Rear - Right

N/A

C ,E ,F

Create/add to Wishlist

8881113183

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
11	Decal, Transportation	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	Decal, Transportation	1	1
3	Bearing (5/8")	1	2
4	Ring, Tolerance	1	2
8	Decal, Transportation	1	1

NLA - Kit, Swing Arm, Rear - Left

N/A

C ,E ,F

Create/add to Wishlist

1133686

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	NLA - Screw, Hex Head w/ Patch (5/16-18 x 4-3/4")	1	2
7	NLA - Damper, Yellow Polyurethane	1	2
9	NLA - Screw, Socket Head Shoulder (1/2 x 3-3/4", 3/8-16)	1	2
10	Washer, Belleville (1/2 x 1 x 1/32")	1	4
11	NLA - Washer (1/2 x 15/16 x 1/8")	1	2
12	Spacer (1/2 x 3/4 x 7/32")	1	2
13	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
14	Locknut (3/8-16)	1	2
15	Spring, Extension (1 x 4-1/2" L)	1	2
16	Plate, Pivot	1	2
17	Spring, Torsion - Right	1	1
17	Spring, Torsion - Left	1	1
18	Washer, Plain (1/4 x 7/8 x 1/16")	1	2
19	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
20	Washer, Flat (21/64 x 53/64 x 7/64")	1	2

NLA - Kit, Swing Arm/ TCD Mounting Hardware - For 4-Pole Motors

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Used for 300 Lb. weight limit and below without a vent tray option. Standard on TDX3 and TDX4.
B	Used for 301 Lb. and above weight limits without a vent tray. Upgrade on TDX3 and TDX4. Standard on TDX5.
C	Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".
D	Includes items 6-7 and 9-20
E	Includes items 3-4 and 8
F	Patent number decal is adhered to the right swing arm and the transportation decal is adhered to the left swing arm.
G	Used for all weight limits with a vent tray option.
H	Spring color changed from Sunny Yellow to Light Yellow 3/22/10. It is recommended to order springs in pairs to match color and maintain equal spring tension on both sides of the wheelchair
I	Spring color remains the same for this part number. It is recommended to order springs in pairs to maintain equal spring tension on both sides of the wheelchair
J	Spring color changed from Sunny Yellow to Dark Yellow 3/22/10. It is recommended to order springs in pairs to match color and maintain equal spring tension on both sides of the wheelchair

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
