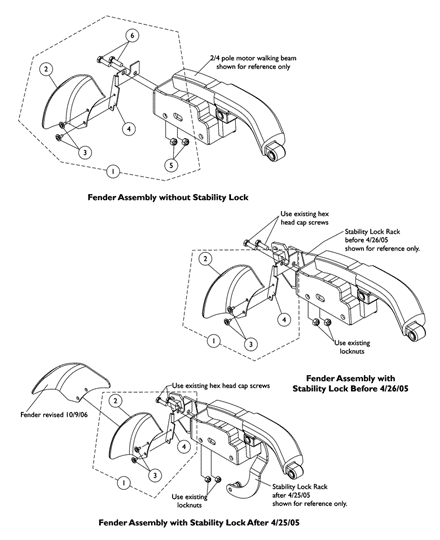

Fender Assembly - 2-Pole & 4-Pole Motors
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1120371 | NLA - Fender Assembly without Stability Lock - Left | 1 | 1 | N/A | A ,D |
Create/add to WishlistCreate/add to Wishlist |
1 | 1120374 | NLA - Fender Assembly with Stability Lock - Right | 1 | 1 | N/A | B ,E |
Create/add to WishlistCreate/add to Wishlist |
1 | 1120375 | NLA - Fender Assembly with Stability Lock - Left | 1 | 1 | N/A | B ,E |
Create/add to WishlistCreate/add to Wishlist |
2 | 1117245 | NLA - Fender - Right | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
2 | 1117246 | NLA - Fender - Left | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
3 | 1114308 | Screw, Phillips Pan Head Tap (#10-32 x 1/2") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1113238 | NLA - Bracket, Fender Mounting Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1113239 | NLA - Bracket, Fender Mounting, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1026158 | Locknut (5/16-18) | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1003548 | Screw, Hex Head (5/16-18 x 1") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2-6 |
B | Includes items 2-4 |
C | Refer to part number 1120374 and order 2 each of item #6 as well. |
D | Refer to part number 1120375 and order 2 each of item #6 as well. |
E | Fenders were revised 10/9/06 and are backward compatible for chairs manufactured before 10/9/06. It is recommended to order fenders in pairs for chairs manufactured before 10/9/06 |
