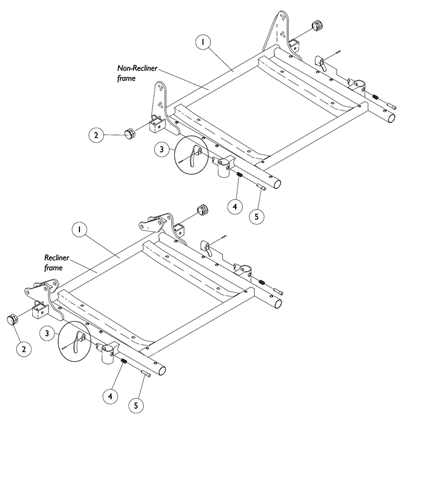

Frames - Seat - ASBA & Hardware (16"-24" Wide) (Before 7/5/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	16"-17" Depth	18" - 19" Depth	20" - 21" Depth	22" Depth
16" Width	1070672- NLA	1070681- NLA	1070690- NLA	1070699- NLA
17" Width	1070673- NLA	1070682- NLA	1070691- NLA	1070700- NLA
18" Width	1070674- NLA	1070683- NLA	1070692- NLA	1070701- NLA
19" Width	1070675- NLA	1070684- NLA	1070693- NLA	1070702- NLA
20" Width	1070676- NLA	1070685- NLA	1070694- NLA	1070703- NLA
21" Width	1070677- NLA	1070686- NLA	1070695- NLA	1070704- NLA
22" Width	1070678- NLA	1070687- NLA	1070696- NLA	1070705- NLA
23" Width	1070679- NLA	1070688- NLA	1070697- NLA	1070706- NLA
24" Width	1070680- NLA	1070689- NLA	1070698- NLA	1070707- NLA

Create/add to Wishlist

#1 Seat Frame with Hardware - Non-Recliner

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	16"-17" Depth	18" - 19" Depth	20" - 21" Depth	22" Depth
16" Width	1070708- NLA	1070717- NLA	1070726- NLA	1070735- NLA
17" Width	1070709- NLA	1070718- NLA	1070727- NLA	1070736- NLA
18" Width	1070710- NLA	1070719- NLA	1070728- NLA	1070737- NLA
19" Width	1070711- NLA	1070720- NLA	1070729- NLA	1070738- NLA
20" Width	1070712- NLA	1070721- NLA	1070730- NLA	1070739- NLA
21" Width	1070713- NLA	1070722- NLA	1070731- NLA	1070740- NLA
22" Width	1070714- NLA	1070723- NLA	1070732- NLA	1070741- NLA
23" Width	1070715- NLA	1070724- NLA	1070733- NLA	1070742- NLA
24" Width	1070716- NLA	1070725- NLA	1070734- NLA	1070743- NLA

Create/add to Wishlist

#1 Seat Frame with Hardware - Recliner

N/A

Create/add to Wishlist

1029501

Plug Button, Black (1")

$7.20

Create/add to Wishlist

1090768

Kit, Lock Handle w/Rivets (Pair)

$16.00

Create/add to Wishlist

47471X074

Spring, Arm Lock

$8.00

Create/add to Wishlist

1028594

Pin, Arm Lock, Black

$8.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes seat frame and items 2-5

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
