Frames - Hardware - Seat Mtg. - ASBA (16"-24" Wide) (Before 7/5/05)

Print this page

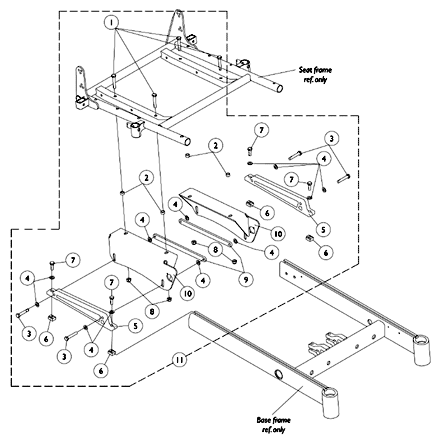

Seat Frame Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1043627	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1070398	NLA - Screw, Hex Head (5/16-18 x 1-1/2")	1	4	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1070413	NLA - Spacer (21/64 x 1/2 x 17/64")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1043627	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	12	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1070388	Support, Seat, Black	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1069724	T-Nut (5/16-18)	1	4	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1070462	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026158	Locknut (5/16-18)	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1070396	NLA - Strap, Bolt, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104428	Plate, Low Seat Mounting - Right	1	1	$75.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104429	Plate, Low Seat Mounting - Left	1	1	$75.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104430	Plate, Medium Seat Mounting - Right	1	1	$79.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104431	Plate, Medium Seat Mounting - Left	1	1	$79.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104432	Plate, Tall Seat Mounting - Right	1	1	$28.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1104433	Plate, Tall Seat Mounting - Left	1	1	$28.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1104764	NLA - Hardware, Seat Frame Mounting (16" W)	1	1	N/A	C ,G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1104763	NLA - Hardware, Seat Frame Mounting (17" W and Wider)	1	1	N/A	C ,G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Part number 1043627 and 1071413 are used on the 16" wide chairs only
B	Part number 1070398 is used on 17" and wider chairs only
C	Item number 10 not included
D	Low 17-1/2" Seat to Floor
E	Medium 19-3/4" Seat to Floor
F	Tall 21-1/2" Seat to Floor
G	Includes items 1-9

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
