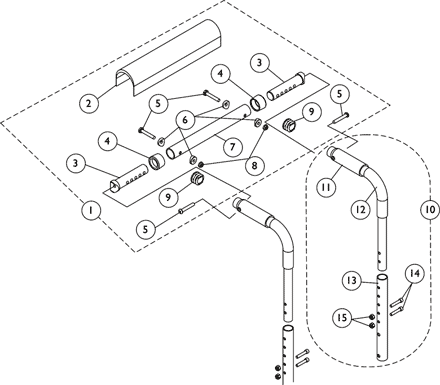

Canes - Back - Spreader Bars For ADJASBA Seat (12"-16" Wide) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1126147

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Tube, Spreader Bar, Black	1	1
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
2	Cover, Spreader Bar (16-20" W)	1	1
9	Plug Button, Black (1")	1	2
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
8	Locknut (1/4-20)	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2
2	Cover, Spreader Bar (16-20" W)	1	1
3	NLA - Insert, Spreader Bar Connector, Black	1	2
4	Anti-Rattle (1")	1	2
5	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4
6	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	NLA - Tube, Spreader Bar, Black	1	1
8	Locknut (1/4-20)	1	2
9	Plug Button, Black (1")	1	2

Kit, Spreader Bar Assembly (12"-16" Wide)

Create/add to Wishlist

1127154

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (12-15" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

NLA - Kit, Back Cane Assembly with Hardware (12"-15" Back Height)

N/A

Create/add to Wishlist

1127155

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (16-19" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

NLA - Kit, Back Cane Assembly with Hardware (16"-19" Back Height)

N/A

Create/add to Wishlist

1127156

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2
11	Grip, Hand, Foam (4")	1	1
12	Handle, Push, Black	1	1
13	Cane, Back, Lower, Black - Right/Left (20-22" H)	1	1
14	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
15	Locknut (1/4-20)	1	2

Kit, Back Cane Assembly with Hardware (20"-22" Back Height)

Create/add to Wishlist

1135505

Package, Foam Hand Grip (4" L)

$40.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-9
B	Includes items 11-15
