Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
18182
⚠
Error
Maximum of three products are allowed for comparison.
Ok
Ok
Added to Cart

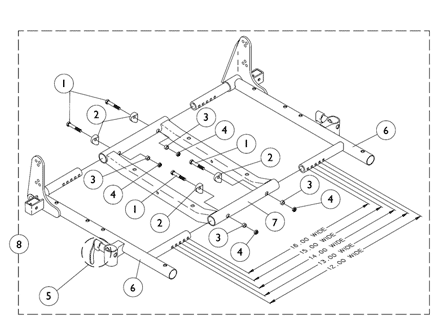

Frames - Seat ASBA & Hardware (12" - 15" W)
Print this page
Click to Enlarge
Item
Part/Kit
Part/Kit Description
Qty/Pkg
Qty/Asbly
MSRP
View Parts Notes
1
1037610
Screw, Hex Head (1/4-20 x 1-5/8")
1
4
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
2
1026099
Spacer, Coved (1/4 x 11/16 x 1/2")
1
4
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
3
1047449
NLA - Spacer (1/4 x 3/8 x 3/16")
1
4
N/A
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
4
1025736
Locknut (1/4-20)
1
4
$7.20
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
5
47471X074
Spring, Arm Lock
1
1
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
5
1028594
Pin, Arm Lock, Black
1
1
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
5
1090768
Kit, Lock Handle w/Rivets (Pair)
2
1
$16.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
6-8
See Chart
Added to Cart
Item Number
Description
12"-13" W 12"-15" D
14"-15" W 12"-15" D
14"-15" W 16"-17" D
14"-15" W 18"-19" D
14"-15" W 20"-21" D
14"-15" W 22" D
6
Seat Frame Right
1070473- NLA
1070473- NLA
1070473- NLA
1070526- NLA
1070528- NLA
1070530- NLA
6
Seat Frame Left
1070474- NLA
1070474- NLA
1070474- NLA
1070527- NLA
1070529- NLA
1070531- NLA
7
Seat Frame Center
1070476- NLA
1070476- NLA
1070476- NLA
1070476- NLA
1070533- NLA
1070533- NLA
8
Seat Frame Assembly
1070469- NLA
1070469- NLA
1070469- NLA
1070534- NLA
1070535- NLA
1070536- NLA
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
See chart-note
Chart Part Notes
Chart Code
Definition
A
Seat frame includes item 5 arm lock assembly.
B
Includes items 1-7
#'s 6-8 ASBA Seat Frame and Hardware
N/A
N/A
N/A
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
Catalog Literature
Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
