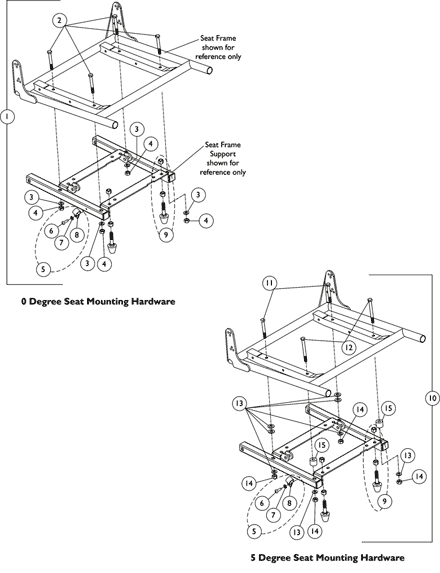

Seats - ASBA Mounting Hardware (16" - 22" W) (Before 7/5/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1107307

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (5/16-18 x 2-3/4")	1	4
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
4	Locknut (5/16-18)	1	4
1	Screw, Hex Head (5/16-18 x 2-3/4")	1	4
2	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
3	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 2-3/4")	1	4
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
4	Locknut (5/16-18)	1	4

NLA - Kit, 0 Degree 16-22" Wide ASBA Seat Mounting Hardware

N/A

Create/add to Wishlist

1106544

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Bracket, Cable/Wire Mounting, Black	1	1
8	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
9	Lockwasher, External Tooth (#10)	1	1
6	NLA - Bracket, Cable/Wire Mounting, Black	1	1
7	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
8	Lockwasher, External Tooth (#10)	1	1
18	NLA - Bracket, Cable/Wire Mounting, Black	1	1
19	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
20	Lockwasher, External Tooth (#10)	1	1
3	NLA - Bracket, Cable/Wire Mounting, Black	1	1
4	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
5	Lockwasher, External Tooth (#10)	1	1
4	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
5	Lockwasher, External Tooth (#10)	1	1
6	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
6	NLA - Bracket, Cable/Wire Mounting, Black	1	1
7	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
8	Lockwasher, External Tooth (#10)	1	1
7	NLA - Bracket, Cable/Wire Mounting, Black	1	1
8	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
9	Lockwasher, External Tooth (#10)	1	1
6	NLA - Bracket, Cable/Wire Mounting, Black	1	1
7	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
8	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
3	NLA - Bracket, Cable/Wire Mounting, Black	1	1
4	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
5	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1
	NLA - Bracket, Cable/Wire Mounting, Black	1	1
	Screw, Phillips Pan Head Tap (#10-16 x 3/4")	1	1
	Lockwasher, External Tooth (#10)	1	1

NLA - Kit, Switch Clip with Mounting Hardware

N/A

Create/add to Wishlist

1111007

NLA - Bumper with Mounting Hardware (Pair)

N/A

Create/add to Wishlist

1087784

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Locknut (5/16-18)	1	4
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	8
12	Screw, Hex Head (5/16-18 x 2-3/4")	1	2
13	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
14	NLA - Spacer (3/8 x 7/8 x 11/16")	1	2
11	Screw, Hex Head (5/16-18 x 2-3/4")	1	2
12	NLA - Screw, Hex Head (5/16-18 x 3-1/4")	1	2
13	Washer, Flat (5/16 x 5/8 x 1/16")	1	8
14	Locknut (5/16-18)	1	4
15	NLA - Spacer (3/8 x 7/8 x 11/16")	1	2

NLA - Kit, 5 Degree 16-22" Wide ASBA Seat Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4
B	Includes items 6-8
C	Includes items 11-15

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
