Front Riggings - Front Rigging Hgr. Asbly. - Pin/Sector Style - ASBA Seat (12" - 15" W) & (16" - 22" W Before 7/5/05)

Print this page

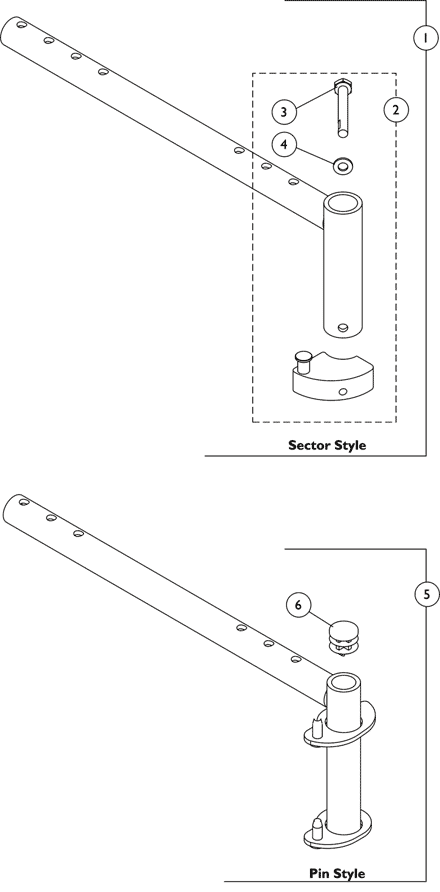

Front Rigging Hanger Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1068435	Front Rigging Hanger Assembly w/ Sector Block, Black - Right (12 - 21" D)	1	1	$31.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1068436	Front Rigging Hanger Assembly w/ Sector Block, Black - Left (12 - 21" D)	1	1	$31.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1068437	NLA - Front Rigging Hanger Assembly w/ Sector Block, Black - Right (22" D)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1068438	NLA - Front Rigging Hanger Assembly w/ Sector Block, Black - Left (22" D)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1054571	Kit, Sector Block - Right	1	1	$19.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1054572	Kit, Sector Block - Left	1	1	$19.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1070356	NLA - Hanger Assembly, Front Rigging, Pin Style, Black - Right (12 - 21" D)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1070357	NLA - Hanger Assembly, Front Rigging, Pin Style, Black - Left (12 - 21" D)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1070358	NLA - Hanger Assembly, Front Rigging, Pin Style, Black - Right (22" D)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1070359	NLA - Hanger Assembly, Front Rigging, Pin Style, Black - Left (22" D)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes item 2
B	Includes the sector block and items 3 and 4
C	Includes item 6

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
