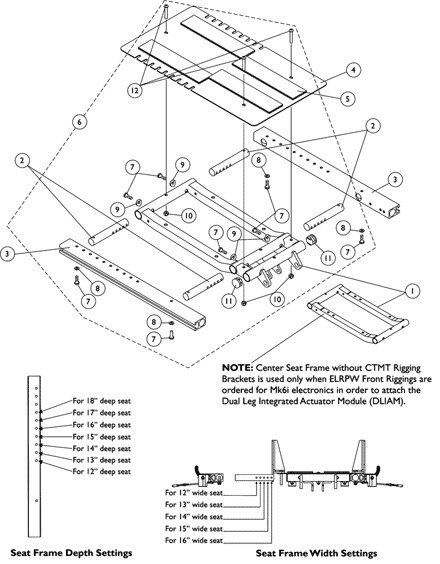

Frames - Seat ADJASBA - Seat Pan & Hdwr. (12" - 16" W) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1121982

NLA - Frame, Center Seat, Black

N/A

Create/add to Wishlist

1070475

NLA - Frame w/o CTMT Brackets, Center Seat, Black

N/A

Create/add to Wishlist

1126126

NLA - Crossbar, Seat Frame (12 - 16" W)

N/A

Create/add to Wishlist

1126127

NLA - Rail, Side (12 - 18" D)

N/A

Create/add to Wishlist

1126144

Pan, Seat, with Hook and Loop Fasteners (12 - 16" W x 12 - 18" D)

Create/add to Wishlist

1039949

NLA - Fastener, Hook Adhesive Back (2" W x 16" L)

N/A

Create/add to Wishlist

1044578

NLA - Fastener, Loop Adhesive Back (2" W x 16" L)

N/A

Create/add to Wishlist

1135500

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	3
11	Plug Button, Black (1")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	3
11	Plug Button, Black (1")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	3
11	Plug Button, Black (1")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	3
11	Plug Button, Black (1")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Locknut (1/4-20)	1	3
11	Plug Button, Black (1")	1	2
12	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	3

NLA - Kit, Seat Frame Assembly Hardware 12"-16" Wide

N/A

B ,D

Create/add to Wishlist

1134425

Package, Plug Button, Black (1")

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes item 5
B	Includes items 7-12
C	Center Seat Frame without CTMT Rigging Brackets is used only when ELRPW Front Riggings are ordered for Mk6i electronics in order to attach the Dual Leg Integrated Actuator Module (DLIAM).
D	item 11 Plug Buttons are not used and only a quantity of 2 for item #12 is required for the Center Seat Frame w/o CTMT Rigging Brackets
