EQUIPMENT US Site

1

1120288

Frame, Center Seat, Black

1

$202.00

D

Create/add to Wishlist

2

1122475

Crossbar, Seat Frame (16" - 20" W)

1

4

$29.00

Create/add to Wishlist

3

1122647

Rail, Seat Frame (16 - 20" D For Formula TRE and 16 - 19" D For ADJASBA)

1

2

$72.00

Create/add to Wishlist

3

1122677

Rail, Seat Frame (20 - 22" D Formula TRE) (19 - 22" D ADJASBA)

1

2

$72.00

Create/add to Wishlist

4

1124386

Pan, Seat with Hook and Loop Fasteners (16 - 20" W) x (16 - 20" D For Formula TRE) & (16 - 19" D For ADJASBA)

1

$229.00

Create/add to Wishlist

4

1124666

Pan, Seat, with Hook and Loop Fasteners (16 - 20" W) x (20 - 22" D For Formula TRE) & (19 - 22" D For ADJASBA)

1

$229.00

Create/add to Wishlist

5

1043082

Hook Fastener with Adhesive Back (2" W x 18" L)

1

2

$12.00

A

Create/add to Wishlist

5

1044580

Loop Fastener with Adhesive Back (2" W x 18" L)

1

2

$12.00

A

Create/add to Wishlist

5

1043084

Hook Fastener with Adhesive back (2" W x 22" L)

1

2

$12.00

B

Create/add to Wishlist

5

1044584

Loop Fastener with Adhesive back (2" W x 22" L)

1

2

$12.00

B

Create/add to Wishlist

6

1135501

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Washer (1/4 x 1/2 x 1/16")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
8	Washer (1/4 x 1/2 x 1/16")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	2
8	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
9	Screw, Socket Button (1/4-20 x 3/4")	1	2
10	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	NLA - Pin, Roll (3/16 x 1")	1	2

Kit, Seat Frame Assembly Hardware

1

$61.00

C

Create/add to Wishlist

12

1114823

Decal, Seat Adjustment Warning

1

2

$7.00

Note Code	Definition
A	For 16"-19" deep seats
B	For 19"-22" deep seats
C	Includes items 7-11
D	When ordering Center Seat Frame (item 1), also order 2 ea. Seat Adjustment Warning Decal (item 12).

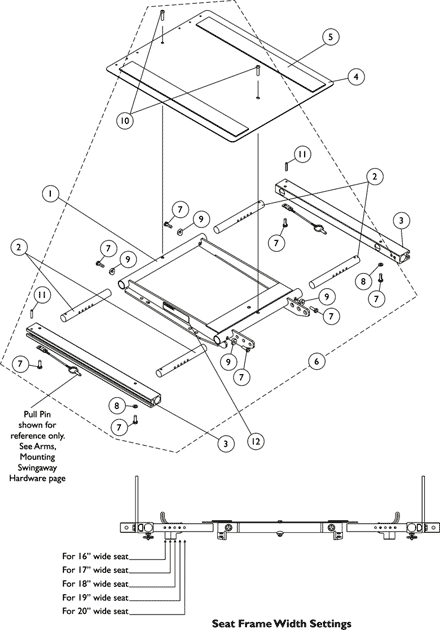

Frames - Seat ADJASBA/ADJRECL - Seat Pan & Hdwr. (16" - 20" W x 16"-22" D) (After 7/4/05)
