Frames - Seat (12" - 15" W ASBA), (12" - 16" W ADJASBA Seats)

Print this page

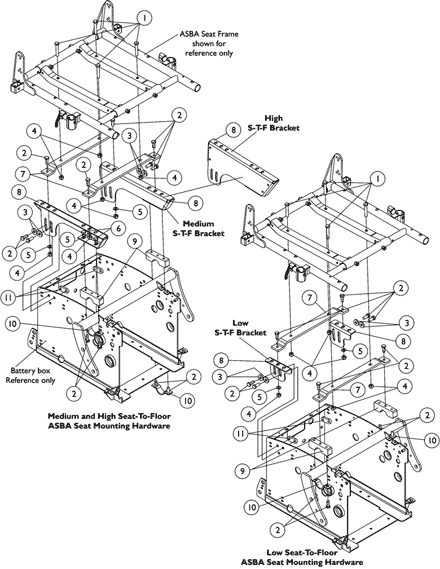

Frame, ASBA Seat Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1043627	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1039860	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	12	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026158	Locknut (5/16-18)	1	8	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1061922	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1070465	NLA - Bracket, Mounting, Black - Junior	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1113228	NLA - Plate, Low Seat-To-Floor Mounting, Rear - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1113229	NLA - Plate, Low Seat-To-Floor Mounting, Rear - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1115850	NLA - Plate, Medium Seat-To-Floor Mounting - Right	1	1	N/A	B ,B1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1115851	NLA - Plate, Medium Seat-To-Floor Mounting - Left	1	1	N/A	B ,B1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1115852	NLA - Plate, High Seat-To-Floor Mounting - Right	1	1	N/A	C ,C1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1115853	NLA - Plate, High Seat-To-Floor Mounting - Left	1	1	N/A	C ,C1	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1113114	NLA - Bracket, Upper Seat, Front, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1113230	NLA - Bracket, Lower Seat, Front, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1113341	NLA - Nut, Strap	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	17-3/4" Seat-To-Floor @ 5 degree tilt
B	19-3/4" Seat-To-Floor @ 5 degree tilt. No longer available as a service part individually. See category Titled "Frames - Seat ADJASBA Mtg. Hdwr. (16" - 24" W) Med S-T-F (After 7/4/05)" and order part #1133758 as a replacement.
B1	Order (4) ea. of item #1 part #1043627 as well to fit a 12-16" Wide Seat Frame.
C	21-3/4" Seat-To-Floor @ 5 degree tilt. No longer available as a service part individually. See category titled "Frames - Seat ADJASBA Mtg. Hdwr. (16" - 24" W) High S-T-F (After 7/4/05)" and order part #1133757 as a replacement.
C1	Order (4) ea. of item #1 part #1043627 as well. to fit a 12-16" Wide Seat Frame.

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
