Frames - Seat ASBA Mounting Hardware (16" - 24" W) (Before 7/5/05)

Print this page

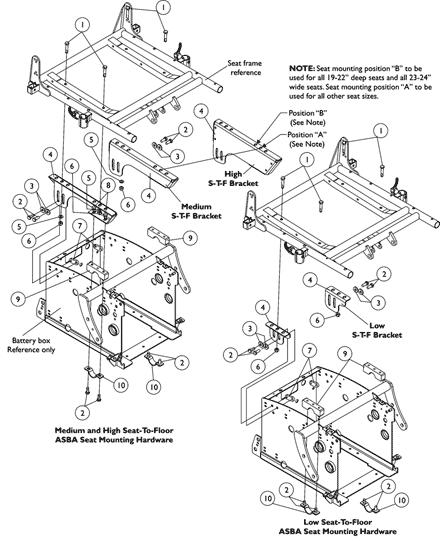

Frame, ASBA Seat Mounting Hardware - 16

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1116983	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1039860	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	8	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1113228	NLA - Plate, Low Seat-To-Floor Mounting, Rear - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1113229	NLA - Plate, Low Seat-To-Floor Mounting, Rear - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1115850	NLA - Plate, Medium Seat-To-Floor Mounting - Right	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1115851	NLA - Plate, Medium Seat-To-Floor Mounting - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1115852	NLA - Plate, High Seat-To-Floor Mounting - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1115853	NLA - Plate, High Seat-To-Floor Mounting - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026158	Locknut (5/16-18)	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1113341	NLA - Nut, Strap	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1061922	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1113114	NLA - Bracket, Upper Seat, Front, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1113230	NLA - Bracket, Lower Seat, Front, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	17" Seat-To-Floor @ 5 degree tilt
B	19" Seat-To-Floor @ 5 degree tilt. No longer available as a service part individually. See category Titled "Frames - Seat ADJASBA Mtg. Hdwr. (16" - 24" W) Med S-T-F (After 7/4/05)" and order part #1133758 as a replacement.
C	21" Seat-To-Floor @ 5 degree tilt. No longer available as a service part individually. See category titled "Frames - Seat ADJASBA Mtg. Hdwr. (16" - 24" W) High S-T-F (After 7/4/05)" and order part #1133757 as a replacement.
