EQUIPMENT US Site

1

See Chart

Added to Cart

Arm Style		Right		Left
Desk Length		1068566- NLA		1068567- NLA
Full Length		1068559- NLA		1068560- NLA

Create/add to Wishlist

#1 Arms Less Pad - 16-19" Deep Seat Frames

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Arm Style		Right		Left
Desk Length		1068540- NLA		1068541- NLA
Full Length		1068528- NLA		1068529- NLA

Create/add to Wishlist

#1 Arms Less Pad - 20" and Deeper Seat Frames

N/A

C

Create/add to Wishlist

2

1117328

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)

1

$66.00

A ,D

Create/add to Wishlist

2

1110818

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

2

1117327

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W)

1

$47.00

A ,D

Create/add to Wishlist

2

1110817

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

3

1068564

Tube, Arm, Desk Length, Black - Right (16-19" D)

1

Create/add to Wishlist

3

1068565

NLA - Tube, Arm, Desk Length, Black - Left (16-19" D)

1

N/A

Create/add to Wishlist

3

1068414

NLA - Tube, Arm, Desk Length, Long, Black - Right (20" and Deeper)

1

N/A

C

Create/add to Wishlist

3

1068415

NLA - Tube, Arm, Desk Length, Long, Black - Left (20" and Deeper)

1

N/A

C

Create/add to Wishlist

3

1068490

Tube, Arm, Full Length, Black - Right (16-19"D)

1

Create/add to Wishlist

3

1068491

NLA - Tube, Arm, Full Length, Black - Left (16 - 19"D)

1

N/A

Create/add to Wishlist

3

1068473

NLA - Tube, Arm, Full Length, Long, Black - Right (20" and Deeper)

1

N/A

C

Create/add to Wishlist

3

1068474

NLA - Tube, Arm, Full Length, Long, Black - Left (20" and Deeper)

1

N/A

C

Create/add to Wishlist

4

1032244

Grip, Foam Hand (9" L)

1

$2.50

Create/add to Wishlist

5

1025729

Screw, Phillips Pan Head Tap (#8-32 x 3/8")

1

4

$10.00

Create/add to Wishlist

6

1035472

NLA - Guard, Clothing, Desk Length

1

N/A

Create/add to Wishlist

6

1044572

NLA - Guard, Clothing, Full Length (16 - 19" D)

1

N/A

Create/add to Wishlist

6

1044005

NLA - Guard, Clothing, Full Length (20" and Deeper)

1

N/A

C

Create/add to Wishlist

7

1035065

Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK

1

$98.00

Create/add to Wishlist

7

1044588

Cover, Clothing Guard with Pocket Fixed Height Full Length (20" and Deeper)

1

C

Create/add to Wishlist

8

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

2

1

$13.00

Create/add to Wishlist

8

1094270

NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")

2

1

N/A

B

Create/add to Wishlist

9

1065936

Plug, Pivot

1

2

$10.00

Create/add to Wishlist

10

1067734

Plug Button, Black (5/8")

1

2

$10.00

Note Code	Definition
A	As of 1/3/02 upholstered waterfall arm pads were replaced with black urethane waterfall arm pads. Order in pairs with screws for chairs manufactured before 1/3/02.
B	For Black Urethane Waterfall Arm pads only.
C	The ADJASBA seat frame for 19-22" depths must use the 16-19" deep arms only.
D	After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

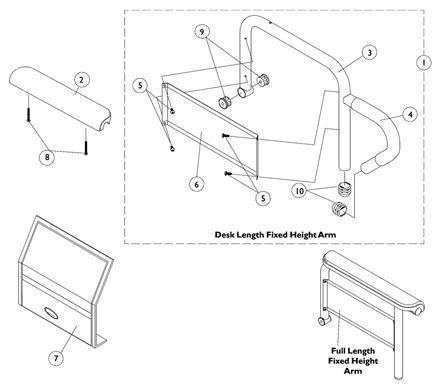

Arms - Fixed Height - (16 - 24" W) x (16 - 22" D) Seat Frames
