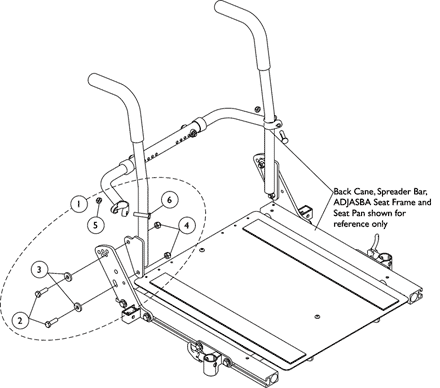

Canes - Back - Attaching Hardware - ADJASBA Seats (16" - 24" W) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1133755

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2

Kit, Back Cane Mounting Hardware (Pair)

$34.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6
