EQUIPMENT US Site

1

1027095

Plug Button, Black (7/8")

1

2

$9.20

Create/add to Wishlist

2

1052997

NLA - Headrest Tube Assembly, Black - Right

1

N/A

Create/add to Wishlist

2

1052998

NLA - Headrest Tube Assembly, Black - Left

1

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Back Height	16"-17" Wide Rt.	16"-17" Wide Lt.	18"-24" Wide Rt.	18"-24" Wide Lt.
18" H	1052079	1052080	1052089	1052090
20" H	1052081	1052082	1052091	1052092
22" H	1052083	1052084	1052093	1052094
24" H	1052085 MSRP: $172.00	1052086 MSRP: $172.00	1052095	1052096
26" H	1052087	1052088	1052097	1052098

Create/add to Wishlist

#3 Back Cane with Grip

N/A

Create/add to Wishlist

4

1050214

Cable with Trigger

1

2

B

Create/add to Wishlist

4

1050215

Cable with Trigger

1

2

$82.00

C

Create/add to Wishlist

4

1050216

Cable with Trigger

1

2

$82.00

D

Create/add to Wishlist

5

1026032

Washer, Nylon (11/32 x 11/16 x 1/16")

1

4

$8.00

Create/add to Wishlist

6

1050153

Screw, Shoulder Hex Socket Head (5/16 x 7/8", 1/4-20)

1

2

$10.00

Create/add to Wishlist

7

1050154

Cylinder, Lock, Recline

1

2

$119.00

E

Create/add to Wishlist

7

1050306

Cylinder, Lock

1

2

$113.00

F

Create/add to Wishlist

8

1050136

Pivot, Block

1

2

$33.00

Create/add to Wishlist

9

1012371

Washer, Nylon (3/8 x 7/8 x 1/16")

1

12

$10.00

Create/add to Wishlist

10

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

4

$8.00

Create/add to Wishlist

11

1050293

Bar, Spreader, Black (14-20" W)

1

$47.00

G

Create/add to Wishlist

11

1050294

Bar, Spreader, Black (21-24" W)

1

H

Create/add to Wishlist

12

1024713

Spring, Torsion w/ Button

1

2

$8.00

Create/add to Wishlist

13

1091417

NLA - Screw, Phillips Pan Head (#10-24 x 1-1/4")

1

2

N/A

Create/add to Wishlist

14

1095503

NLA - Package, Tie Wrap (5-5/8" L)

10

1

N/A

Create/add to Wishlist

15

1025736

Locknut (1/4-20)

1

2

$7.20

Create/add to Wishlist

16

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$7.20

Create/add to Wishlist

17

1026158

Locknut (5/16-18)

1

4

$9.20

Create/add to Wishlist

18

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

4

$7.20

Create/add to Wishlist

19

1053178

NLA - Switch Assembly, Limit

1

N/A

A

Create/add to Wishlist

20

1008525

NLA - Washer, Internal Tooth Lock (#4-40)

1

5

N/A

Create/add to Wishlist

21

1025116

NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")

1

5

N/A

Create/add to Wishlist

22

1024001

Sensor, Actuator Switch

1

$21.00

Create/add to Wishlist

23

1050310

NLA - Clamp, Cable

1

N/A

Create/add to Wishlist

24

1095503

NLA - Package, Tie Wrap (5-5/8" L)

10

1

N/A

Create/add to Wishlist

25

1092913

NLA - Cable, Drive Lockout Sensor

1

N/A

Note Code	Definition
A	Includes items 20-24. Cable sensor is not included, see item 25
B	26" high back canes
C	22-24" high back canes
D	18-20" high back canes
E	250 lb. weight limit
F	251-400 lb. weight limit
G	16-17" wide
H	18-24" wide

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

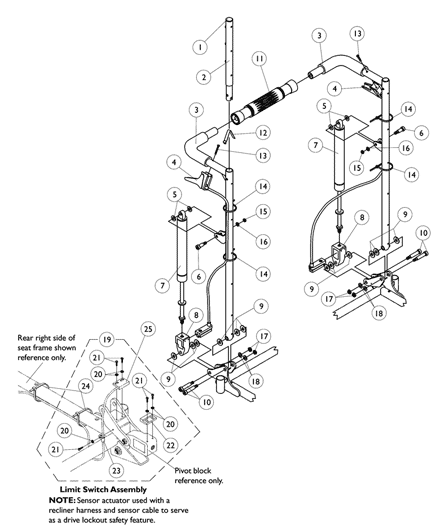

Backs - Recliner Assembly - ASBA Seat Frames (Before 7/5/05)
