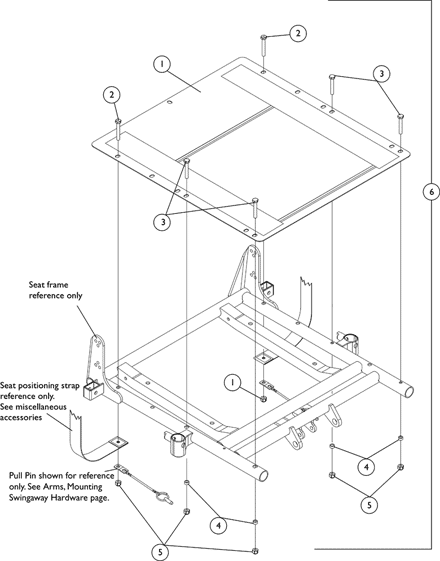

Seat Pans & Mounting Hardware - ASBA Seats (Before 7/5/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	12"-15" Deep	16" Deep	17" Deep	18" Deep
12" W	1066009- NLA	1070513	N/A	N/A
13" W	1066010- NLA	1070514- NLA	N/A	N/A
14" W	1066022- NLA	1066011- NLA	1066022- NLA	1066033- NLA
15" W	1066023- NLA	1066012- NLA	1066023- NLA	1066034- NLA
16" W	1066024	1066013- NLA	1066024	1066035- NLA
17" W	N/A	1066014- NLA	1066025- NLA	1066036- NLA
18" W	N/A	1066015- NLA	1066026	1066037- NLA
19" W	N/A	1066016- NLA	1066027- NLA	1066038- NLA
20" W	N/A	1066017- NLA	1066028- NLA	1066039- NLA
21" W	N/A	1066018- NLA	1066029- NLA	1066040- NLA
22" W	N/A	1066019- NLA	1066030- NLA	1066041- NLA
23" W	N/A	1066020- NLA	1066031- NLA	1066042- NLA
24" W	N/A	1066021- NLA	1066032- NLA	1066043- NLA

Create/add to Wishlist

#1 Seat Pan - 12"-18" Depth

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	19" Deep	20" Deep	21" Deep	22" Deep
14" W	1066044- NLA	1066055- NLA	1066066- NLA	1066077- NLA
15" W	1066045- NLA	1066056- NLA	1066067- NLA	1066078- NLA
16" W	1066046- NLA	1066057- NLA	1066068- NLA	1066079- NLA
17" W	1066047- NLA	1066058- NLA	1066069- NLA	1066080- NLA
18" W	1066048- NLA	1066059- NLA	1066070- NLA	1066081- NLA
19" W	1066049- NLA	1066060	1066071- NLA	1066082- NLA
20" W	1066050- NLA	1066061- NLA	1066072- NLA	1066083- NLA
21" W	1066051- NLA	1066062- NLA	1066073- NLA	1066084- NLA
22" W	1066052- NLA	1066063- NLA	1066074- NLA	1066085- NLA
23" W	1066053- NLA	1066064- NLA	1066075- NLA	1066086- NLA
24" W	1066054- NLA	1066065- NLA	1066076- NLA	1066087- NLA

Create/add to Wishlist

#1 Seat Pan - 19"-22" Depth

N/A

Create/add to Wishlist

1070459

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6

NLA - Kit, Seat Pan Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5. Seat Pans and Front Rigging Hangers share the same mounting hardware items 3-5.

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
