Frames - Seat Mounting Hardware - Elevate Only For ASBA Seating (Before 7/5/05)

Print this page

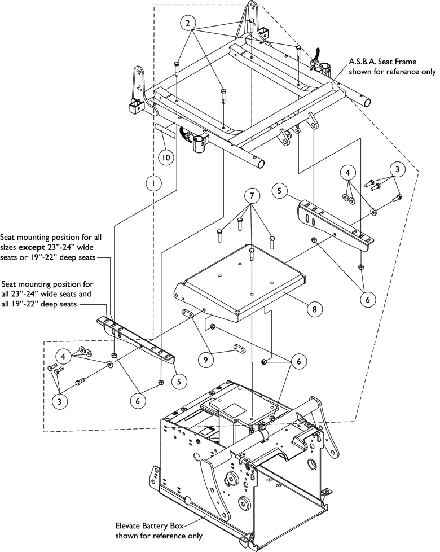

Frame, Seat Mounting Hardware, ASBA

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1125777

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-1/2")	1	4
3	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	6
4	Washer, Flat (21/64 x 53/64 x 7/64")	1	6
5	NLA - Bracket, Seat Frame Mounting, Black - Right	1	1
5	NLA - Bracket, Seat Frame Mounting, Black - Left	1	1
6	Locknut (5/16-18)	1	10
7	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	4
8	NLA - Plate, A.S.B.A. Seat Frame Mounting	1	1
9	NLA - Nut, Strap	1	2
10	Decal, Seat Adjustment Warning	1	2

Kit, A.S.B.A. Seat Frame Mounting Hardware

1

1

N/A

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-10
