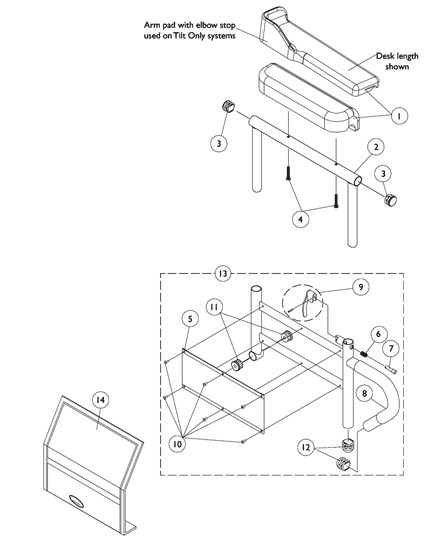

Arms - w/o Mounting Hardware - Adjustable Height - Elevate Only or Tilt Seating
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1110818 | Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair) | 2 | 1 |
$122.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1117327 | Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) | 1 | 1 |
$47.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1110817 | Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair) | 2 | 1 |
$122.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1 | 1082910 | Pad, Arm w/ Elbow Stop, Desk Length, Urethane, Black - Right (13" L x 3" W) | 1 | 1 |
$32.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1082911 | Pad, Arm w/ Elbow Stop, Desk Length, Urethane, Black - Left (13" L x 3" W) | 1 | 1 |
$32.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1090190 | Kit, Arm Pad w/ Screws and Elbow Stop, Desk Length, Urethane, Black (13" L x 3" W) (Pair) | 2 | 1 |
$44.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1082912 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Right (17" L x 3" W) | 1 | 1 |
$32.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1082913 | Pad, Arm w/ Elbow Stop, Full Length, Urethane, Black - Left (17" L x 3" W) | 1 | 1 |
$32.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
1 | 1090191 | Kit, Arm Pad w/ Screws and Elbow Stop, Full Length, Urethane, Black (17" L x 3" W) (Pair) | 2 | 1 |
$48.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
2 | 1071253 | Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1070859 | Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left | 1 | 1 |
$53.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1027095 | Plug Button, Black (7/8") | 1 | 2 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1094270 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4") | 2 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1064130 | NLA - Guard, Clothing | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 47471X074 | Spring, Arm Lock | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1028594 | Pin, Arm Lock, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1032244 | Grip, Foam Hand (9" L) | 1 | 1 |
$2.50 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1090768 | Kit, Lock Handle w/Rivets (Pair) | 2 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1028645 | Rivet | 1 | 6 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1065936 | Plug, Pivot | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1067734 | Plug Button, Black (5/8") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1068416 | Arm Base Assembly, Black - Right (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1068417 | Arm Base Assembly, Black - Left (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1068418 | Arm Base Assembly, Black - Right (20" and Deeper) | 1 | 1 |
$94.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
13 | 1068419 | Arm Base Assembly, Black - Left (20" and Deeper) | 1 | 1 |
$94.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
13 | 1067761 | Arm Base Assembly, 1" Lower, Black - Right (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1067762 | Arm Base Assembly, 1" Lower, Black - Left (16-19" D) | 1 | 1 |
$94.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1067755 | NLA - Arm Base Assembly, 1" Lower, Black - Right (20" and Deeper) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
13 | 1067756 | NLA - Arm Base Assembly, 1" Lower, Black - Left (20" and Deeper) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
14 | 1035065 | Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK | 1 | 1 |
$98.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | The ADJASBA seat frame for 19-22" depths including the Tilt Only System must use the 16-19" deep arms only. |
B | Arm Pads w/ Elbow Stop is used for Formula Tilt Only systems |
