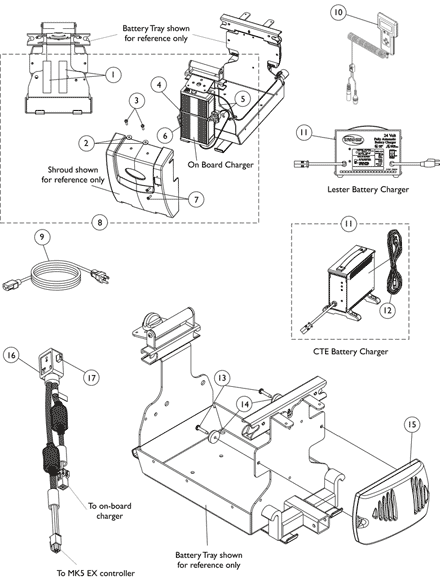

Electronics - MK5 Controllers - Cables - Programmer & Battery Charger (After 6/26/03)
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 1-7 |
| B | Only available on chairs with PTO Seating System |
| C | Used on chairs without Power Tilt Only (PTO) seating system. |
| D | The 8 Amp. Lester charger was standard on-chair before 4/1/04, the CTE charger from 4/1/04 thru 7/14/04, on Power Tilt Only (PTO) seating system chairs. |
| E | CTE charger introduced on-chair as an optional choice 4/1/04 and standard on-chair from 4/1/04 thru 7/14/04 when a Power Tilt Only (PTO) seating system is present |
| E1 | Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. Serial number starts with 04A00000001. For wet cell batteries refer to the Lester 8 Amp. charger. |
| F | Used only when PTO Plus is present. Item 17 (fuse) is included. |
| G | Used on PTO Plus models. On-board charger is standard on chairs with Power Tilt Only (PTO Plus) seating system. |
| H | No longer available as a service part. Please use 1121086 as its replacement. |
| I | Use Battery Charger part number 1123249 as a replacement. |
