Electronics - MK5 Controllers, Programmer and Hardware (After 2/14/03)

Print this page

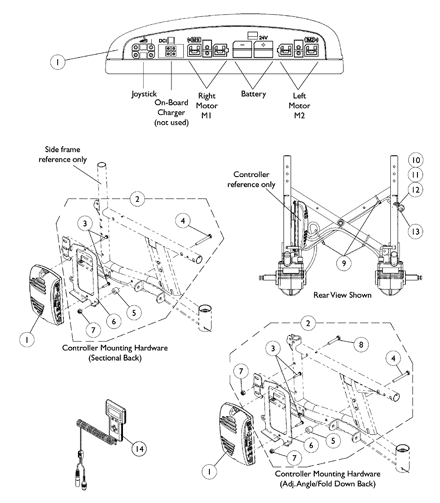

MK5 Controllers and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1109530	Controller, MK5 NX	1	1	$1,077.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1109530E	NLA - WARR RPLMT - Controller, MK5 NX	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1109531	NLA - Controller, MK5 NX-LP	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1115360	NLA - Hardware, MK5 Controller Mounting, Sectional Back	1	1	N/A	C ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1115361	NLA - Hardware, MK5 Controller Mounting, Adj. Angle Fold Down Back	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1113439	NLA - Screw, Phillips Pan Head Tap (#10-32 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1026154	NLA - Screw, Hex Head (1/4-20 x 2-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1112992	NLA - Spacer (9/32 x 5/8 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1112989	NLA - Bracket, MK5 Controller Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025736	Locknut (1/4-20)	1	1	$7.20	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070759	Screw, Hex Head (1/4-20 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025716	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025731	Locknut (#10-32)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026034	NLA - Washer, Nylon (3/16 x 7/16 x 1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	50000X403	NLA - Clamp, Black Plastic	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1109091	NLA - Programmer, Remote	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	For R51, R51LX and R51LXP models
B	For R32, R32LX, R50LX models
C	Includes items 3-7
D	Includes items 3-8
E	Adj. angle/fold down back takes 2 in quantity
F	This part is no longer available. Please use part number 1115361 as a direct replacement.

Catalog Literature

Parts Books for Nutron®
