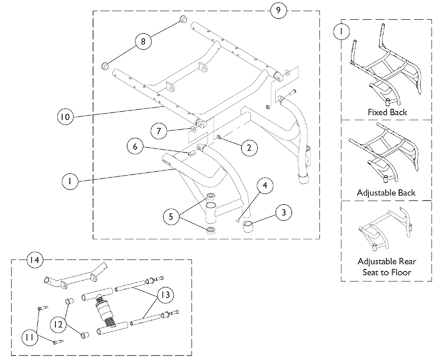

Frames - Seat and Frame Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | 1028769 | Locknut (5/16-18) | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3 | 1111949 | NLA - Clamp, Footrest | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4 | 1026911 | NLA - Screw, Socket Set Cone Point (1/4-20 x 1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5 | 40117X021 | Bearing (1/2" I.D. x 1-1/8" O.D.) | 1 | 4 |
$10.30 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 | 1000208 | NLA - Screw, Shoulder Hex Socket Head (5/16" x 3/8", 1/4-20) | 1 | 2 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 | 1046494 | Screw, Socket Button Head (5/16-18 x 7/8") | 1 | 2 |
$2.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
7 | 1046497 | NLA - Washer, Nylon (5/16 x 7/8 x 1/64") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
8 | 1056328 | Plug Button, Black (1") | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9 | 1098112 | NLA - Hardware, Frame, A6, Both Sides | 2 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
#10 Seat Frames | N/A | N/A | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
11 | 1069421 | NLA - Screw, Shoulder Hex Socket Head (3/8 x 1", 5/16-18) | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
12 | 1093116 | NLA - Flange | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
13 | 1095638 | NLA - Rod, Attaching, Adjustable Height | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
14 |
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
#14 Seat Adjustment Assembly | N/A | N/A | N/A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Configured Item |
B | Chairs built Before 9/16/02. Due to design improvement, this screw was replaced with part nos. 1046494 and 1028769. |
C | Chairs built After 9/15/02. |
D | Includes items 2-8. |
