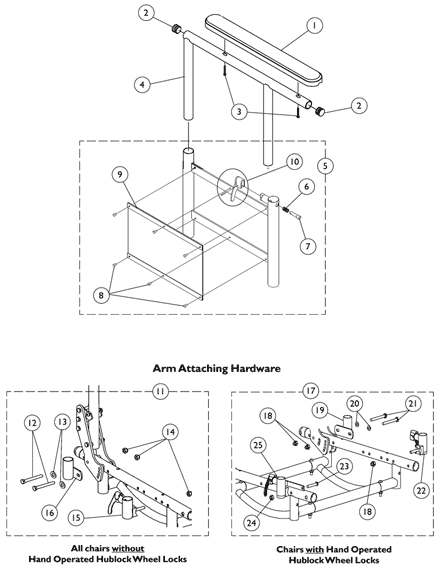

Arms - Adjustable Height

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

8881053578

Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair)

$53.00

Create/add to Wishlist

8881053577

Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair)

$53.00

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

$9.20

Create/add to Wishlist

1111714

Package, Screw Phillips Pan Head (#10-32 x 1-1/8")

$10.00

Create/add to Wishlist

1070859

Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left

$53.00

Create/add to Wishlist

1041522

Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left

$44.00

Create/add to Wishlist

1035892

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1
5	Kit, Lock Handle w/Rivets (Pair)	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
	Base, Armrest, Adjustable Height	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1

Adjustable Height Arm Base Assembly - Right

$88.00

Create/add to Wishlist

1035893

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1
	Base, Armrest, Adjustable Height	1	1
5	Kit, Lock Handle w/Rivets (Pair)	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1
	Base, Armrest, Adjustable Height	1	1
6	Spring, Arm Lock	1	1
7	Pin, Arm Lock, Black	1	1
8	Rivet	1	6
9	NLA - Guard, Clothing	1	1
10	Kit, Lock Handle w/Rivets (Pair)	1	1

Adjustable Height Arm Base Assembly - Left

$88.00

Create/add to Wishlist

1133487

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
16	Washer (1/4 x 1/2 x 1/16")	1	4
17	Nut, Hex with Nylon Cap (1/4-20)	1	6
18	Socket, Arm, Front - Right	1	1
18	Socket, Arm, Front - Left	1	1
19	Socket, Arm, Rear - Right/Left	1	2
12	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	4
14	Nut, Hex with Nylon Cap (1/4-20)	1	6
15	Socket, Arm, Front - Right	1	1
15	Socket, Arm, Front - Left	1	1
16	Socket, Arm, Rear - Right/Left	1	2

Kit, Arm Attaching Hardware

$111.00

Create/add to Wishlist

1133488

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
21	Nut, Hex with Nylon Cap (1/4-20)	1	6
22	Socket, Arm, Rear - Right/Left	1	2
23	Washer (1/4 x 1/2 x 1/16")	1	4
24	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
25	Socket, Arm, Front - Left	1	1
26	Screw, Socket Button Head (1/4-28 x 1-1/2")	1	1
27	Locknut (1/4-28)	1	1
28	Arm Socket Assembly, Hublock - Right	1	1
18	Nut, Hex with Nylon Cap (1/4-20)	1	6
19	Socket, Arm, Rear - Right/Left	1	2
20	Washer (1/4 x 1/2 x 1/16")	1	4
21	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
22	Socket, Arm, Front - Left	1	1
23	Screw, Socket Button Head (1/4-28 x 1-1/2")	1	1
24	Locknut (1/4-28)	1	1
25	Arm Socket Assembly, Hublock - Right	1	1

Kit, Arm Attaching Hardware for Hand Oper. Hublock

$171.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Specify upholstery color U67 Black when ordering
B	Includes items 6-10
C	Includes items 12-16
D	Includes items 12-16. Contains enough hardware for both arms
E	Includes items 18-25. Contains enough hardware for both arms

Catalog Literature

Parts Books for Solara® 2G Spree GT™
