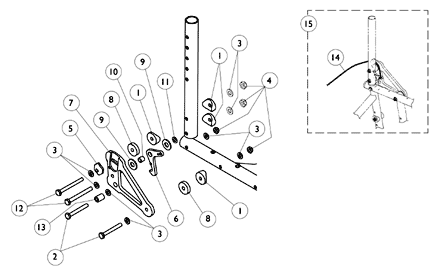

Rear Upright Tube Mounting Hardware
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1055349 | Screw, Hex Head (1/4-28 x 2") | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1026907 | Washer (1/4 x 1/2 x 1/16") | 1 | 16 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1025765 | Locknut (1/4-28) | 1 | 4 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1039232 | NLA - Cam, Adjustment | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1081354 | NLA - Latch, Backrest - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1081355 | NLA - Latch, Backrest - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1079920 | NLA - Plate, Backrest Support -Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1079921 | NLA - Plate, Backrest Support -Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1040776 | NLA - Spacer, Nylon (1/4 x 1 x 1/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1012371 | Washer, Nylon (3/8 x 7/8 x 1/16") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1026162 | Spacer (1/4 x 3/8 x 11/32") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
11 | 1025728 | Washer (1/4 x 1/2 x 1/32") | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 1055351 | NLA - Screw, Hex Head (1/4-28 x 2-1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1039233 | NLA - Spacer, Back Stop (1/4 x 7/16 x 5/8") | 1 | 1 |
$4.00 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1141633 | Cord, Nylon (6-1/2 ft.) | 1 | 1 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1041149 | NLA - Kit, Backrest Hardware (Pair) | 2 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
15 | 1097082 | NLA - Kit, Backrest Hardware (Pair) | 2 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | For chairs without Half Arms. Includes items 1-11 and 13- 14. |
B | For chairs with Half Arms. Includes items 1-14. |
