1

See Chart

Added to Cart

14" Wide		15" Wide		16" Wide		17" Wide		18" Wide		19" Wide		20" Wide
1065992- NLA		1065993- NLA		1065994- NLA		1065995- NLA		1065996- NLA		1065997- NLA		1065998- NLA

Create/add to Wishlist

#1 Axle Tubes

N/A

Create/add to Wishlist

2

1065886

Ring, Toe-In/Toe-Out Adjusting

1

2

Create/add to Wishlist

3

1055347

NLA - Screw, Hex Head (1/4-28 x 1-1/2")

1

2

N/A

Create/add to Wishlist

3

1083913

Pin, Quick Release

1

$12.00

A ,B

Create/add to Wishlist

4

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$7.20

Create/add to Wishlist

5

1098115

NLA - Clamp, Camber without Anti-Tip Mount - Right

1

N/A

Create/add to Wishlist

5

1098116

NLA - Clamp, Camber without Anti-Tip Mount - Left

1

N/A

Create/add to Wishlist

5

1098117

NLA - Clamp, Camber with Anti-Tip Mount - Right

1

N/A

Create/add to Wishlist

5

1098118

NLA - Clamp, Camber with Anti-Tip Mount - Left

1

N/A

Create/add to Wishlist

6

1065362

Locknut (1/4-28)

1

2

$7.20

Create/add to Wishlist

7

1065887

NLA - Ring, Indexing

1

2

N/A

Create/add to Wishlist

8

1080135

NLA - Screw, Hex Head w/ Patch (1/4-28 x 3/4")

1

2

N/A

Create/add to Wishlist

9

1025763

Spring, Torsion with Double Button

1

$10.00

Create/add to Wishlist

10

1055348

Screw, Hex Head (1/4-28 x 1-3/4")

1

2

$9.00

Create/add to Wishlist

11

1097976

NLA - Clamp, Tube

1

N/A

Create/add to Wishlist

12

1064265

NLA - Pin, Quick Release

1

2

N/A

Create/add to Wishlist

13

1066489

NLA - Screw, Thread Forming (M4 x 16mm)

1

2

N/A

Create/add to Wishlist

14

See Chart

Added to Cart

Degree Of Angle	Right	Left
0 Degree - 3 Degree	1066219- NLA	1066229- NLA
0 Degree - 6 Degree	1066220- NLA	1066230- NLA
0 Degree - 9 Degree	1066221- NLA	1066231- NLA
0 Degree - 12 Degree	1066222- NLA	1066232- NLA

3 Degree - 6 Degree	1066223- NLA	1066233- NLA
3 Degree - 9 Degree	1066224- NLA	1066234- NLA
3 Degree - 12 Degree	1066225- NLA	1066235- NLA

6 Degree - 9 Degree	1066226- NLA	1066236- NLA
6 Degree - 12 Degree	1066227- NLA	1066237- NLA
9 Degree - 12 Degree	1066228- NLA	1066238- NLA

Create/add to Wishlist

#14 Dual Setting Camber Inserts

N/A

Create/add to Wishlist

15

1062949

NLA - Decal, Indexing

1

2

N/A

Create/add to Wishlist

16

1040361

Axle, Quick Release w/ Locknut (1/2" x 5")

1

$48.00

Create/add to Wishlist

17

1043487

NLA - Axle, Quad Release

1

N/A

Create/add to Wishlist

18

1068038

NLA - Axle, Quick Release (Dome)

1

N/A

C

Create/add to Wishlist

18

1113049

Axle, Quick Release w/ Dome Button, Black

1

$39.00

D

Create/add to Wishlist

18

1065303

Axle, Quick Release w/ Flat Button, Black

1

$40.00

E

Note Code	Definition
A	Not Shown
B	Quick Release Pin may be subsituted for Screw (item 3).
C	Q.R. Axle (1068038) had an Anodized Dome finish. Q.R. Axle part no. 1113049, w/ Black dome button, can be used as a replacement but may want to replace in pairs due to aesthetics.
D	Used on all Spoke Rear Wheels except SPIN24, SPIN25, and SPIN26
E	Used on SPIN24, SPIN25, and SPIN26 Spoke Rear Wheels

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

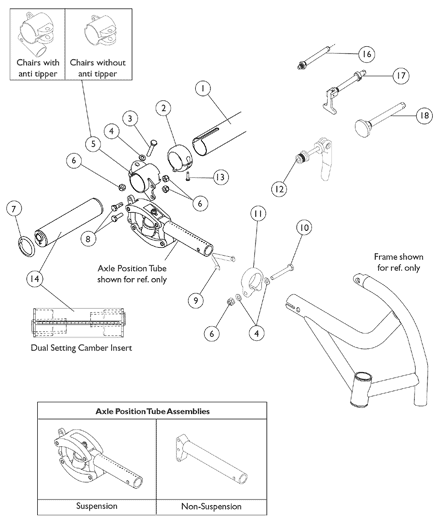

Axles - Camber Bars and Wheel Attaching Hardware
