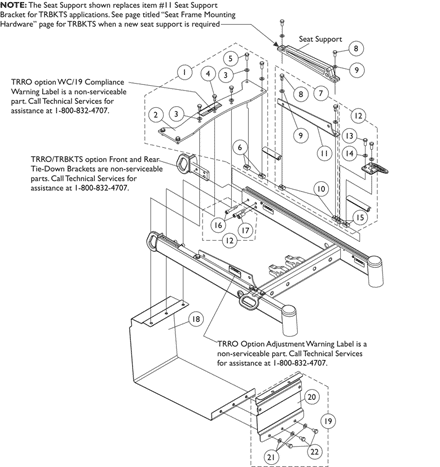

Frames - Hardware - Base Interface - ADJASBA Seat w/ TRRO/TRBKTS Option

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1140263

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
	T-Nut (5/16-18)	1	4
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
6	T-Nut (5/16-18)	1	4
20	Bracket, Top Battery Support, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
22	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
23	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
24	T-Nut (5/16-18)	1	4
25	Bracket, Top Battery Support, Black	1	1
26	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
27	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
28	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
29	T-Nut (5/16-18)	1	4

NLA - Kit, Top Battery Support Bracket and Mounting Hardware

N/A

Create/add to Wishlist

1140257

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
9	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
10	T-Nut (5/16-18)	1	2
11	Bracket, Seat Support, Black - Right	1	1

NLA - Kit, Seat Support Bracket w/ Mounting Hardware - Right

N/A

Create/add to Wishlist

1140258

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
9	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
10	T-Nut (5/16-18)	1	2
11	Bracket, Seat Support, Black - Left	1	1

NLA - Kit, Seat Support Bracket w/ Mounting Hardware - Left

N/A

Create/add to Wishlist

1140259

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
9	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
10	T-Nut (5/16-18)	1	4
11	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
12	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
13	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
14	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
15	T-Nut (5/16-18)	1	4
16	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
17	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
19	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
20	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
21	T-Nut (5/16-18)	1	4
22	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
23	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
14	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
15	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
16	T-Nut (5/16-18)	1	4
17	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
18	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2

NLA - Kit, Front/Rear Tie-Down Brackets Mounting Hardware

N/A

Create/add to Wishlist

1135963

Bracket, Battery Support, Black

$99.00

Create/add to Wishlist

1140260

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Bracket, Battery Support, Front, Black	1	1
16	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
17	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
20	Bracket, Battery Support, Front, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
22	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
27	Bracket, Battery Support, Front, Black	1	1
28	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
29	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
32	Bracket, Battery Support, Front, Black	1	1
33	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
34	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3

NLA - Kit, Front Battery Support Bracket with Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6. This kit used when TRBKTS option is ordered. TRRO option uses the same retainer bracket with the addition of the WC/19 Compliance Warning Label attached
B	Includes items 8-11
C	Includes items 13-17
D	Includes items 20-22

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
