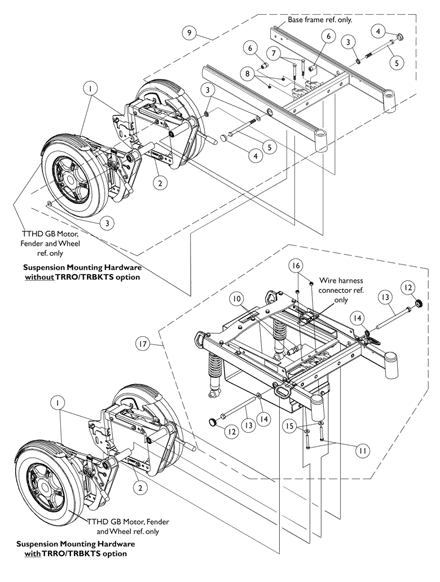

Suspension Arm & Mounting Hardware - Gearless/ Brushless

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1115486

Kit, Suspension Arm with Warning Decal, Black - Right

Create/add to Wishlist

1115487

NLA - Kit, Suspension Arm with Warning Decal, Black - Left

N/A

Create/add to Wishlist

1053056

NLA - Decal, Warning

N/A

Create/add to Wishlist

1078243

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	4
4	Plug Button, Headtube, Black	1	2
5	NLA - Screw, Hex Head (1/2-20 x 7")	1	2
6	NLA - Nut, Shoulder (1/2-20)	1	2
7	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
8	Locknut (5/16-18)	1	2
3	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	4
4	Plug Button, Headtube, Black	1	2
5	NLA - Screw, Hex Head (1/2-20 x 7")	1	2
6	NLA - Nut, Shoulder (1/2-20)	1	2
7	NLA - Screw, Hex Head (5/16-18 x 2")	1	2
8	Locknut (5/16-18)	1	2

NLA - Kit, Suspension Arm Mounting Hardware

N/A

Create/add to Wishlist

1135971

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	NLA - Nut, Shoulder (1/2-20)	1	2
11	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	2
12	Plug Button, Headtube, Black	1	2
13	NLA - Screw, Hex Head (1/2-20 x 7")	1	2
14	NLA - Washer (1/2" I.D. x 7/8" O.D.)	1	2
15	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
16	Locknut (5/16-18)	1	2

NLA - Kit, Suspension Mounting Hardware For TRRO/TRBKTS Option

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-8
B	Includes items 10-16

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
