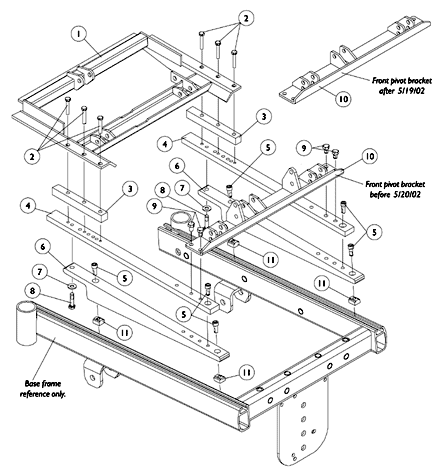

Frame - Base Interface Hardware - 2GR - FWD
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1030949 | Screw, Hex Head (1/4-20 x 1-1/2") | 1 | 6 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 1086943 | NLA - Bar, Spacer, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1095481 | NLA - Plate, Wedge | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1086944 | NLA - Screw, Socket Head (5/16-18 x 3/4") | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1095479 | NLA - Wedge, Seat Mounting, Black | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1074133 | Washer, Steel (5/16 x 3/4 x 1/16") | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 7930337 | NLA - Package, Screw, Hex Head w/ Patch (5/16-18 x 1-1/4") | 25 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1061922 | NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1082872 | NLA - Bracket, Pivot, Front, Black | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
11 | 1069724 | T-Nut (5/16-18) | 1 | 4 |
$12.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Front pivot bracket made before 5/20/02 is no longer available. For seating systems manufactured before 5/20/02, see Front Pivot Bracket and Links Kit page and order Kit part number 1112693. |
