Frames - Seat ADJASBA Mtg. Hdwr. (16" - 24" W) Low S-T-F TRRO/TRBKTS Option

Print this page

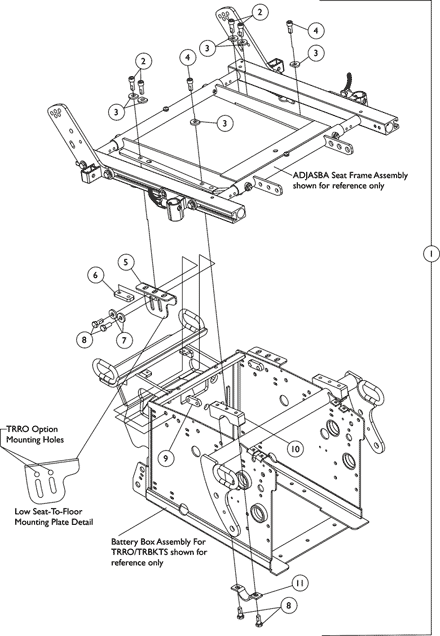

ADJASBA Seat Frame Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1139542

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Head w/ Patch (5/16-18 x 7/8")	1	4
3	NLA - Washer, Ground (11/32 x 13/16 x 1/8")	1	6
4	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	2
5	Plate, Low Seat-To-Floor Mounting, Rear TRRO/TRBKTS - Right	1	1
5	Plate, Low Seat-To-Floor Mounting, Rear TRRO/TRBKTS - Left	1	1
6	Plate, Nut (5/16-18)	1	2
7	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
8	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	8
9	NLA - Nut, Strap	1	2
10	NLA - Bracket, Upper Seat, Front, Black	1	2
11	NLA - Bracket, Lower Seat, Front, Black	1	2

Kit, Seat Frame Mtg. Hdwr. 16"-24" W, Low S-T-F with TRRO/TRBKTS Option

1

1

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-11

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
