1139553

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4
2	Bolt, Round Head Square Neck (5/16-18 x 1-3/4")	1	4
3	NLA - Insert, Back Cane	1	2
4	Spacer, Coved (3/4 x 1 x 1/2")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Locknut (5/16-18)	1	4

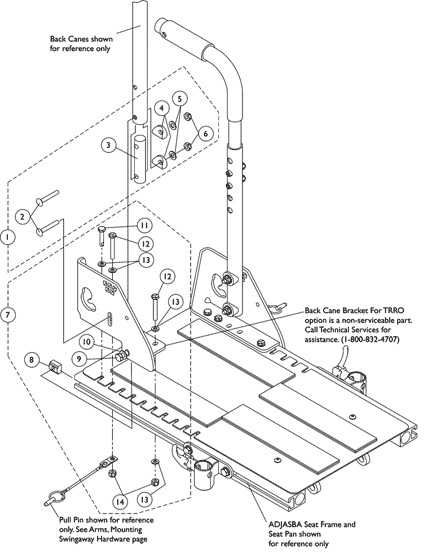

Kit, Back Cane Attaching Hardware For TRRO Option

1136027

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Locknut (1/4-20)	1	4
8	T-Nut (5/16-18)	1	2
9	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
10	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
11	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4")	1	2
12	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	8
8	T-Nut (5/16-18)	1	2
9	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
10	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
11	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4")	1	2
12	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	8
14	Locknut (1/4-20)	1	4
8	T-Nut (5/16-18)	1	2
9	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
10	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
11	NLA - Screw, Hex Head w/ Patch (1/4-20 x 1-1/4")	1	2
12	NLA - Screw, Hex Head (1/4-20 x 1-3/4")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	8
14	Locknut (1/4-20)	1	4

NLA - Kit, Back Cane Bracket Mounting Hardware For TRRO Option (16"-18" Deep)

N/A

Note Code	Definition
A	Includes items 2-6
B	Includes items 8-14
