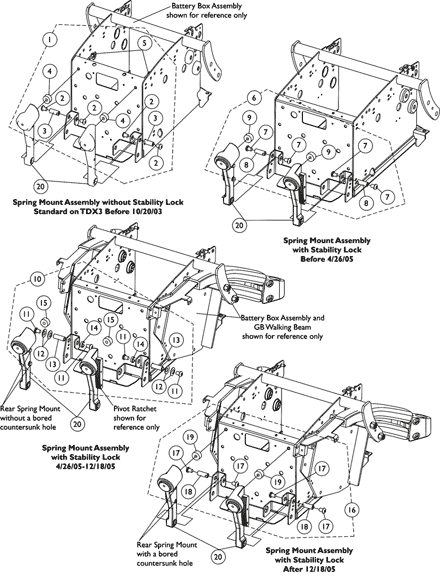

Spring Mount Assembly - Rear
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2-5. Standard on TDX3 before 10/20/03 |
| B | Before 4/26/05. Includes items 7-9. Upgrade on TDX3 before 10/20/03 and standard on TDX3 after 10/19/03. Stability Lock always came standard on TDX4 and TDX5 models. |
| C | Between 4/26/05-12/18/05 |
| D | After 12/18/05 |
| E | Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints". |
| F | After 12/18/05 the Rear Spring Mount was revised with a bored countersunk hole that mounts the Pivot Ratchet. Pivot Ratchet with Hardware dated after 12/18/05 must be ordered when replacing a Rear Spring Mount that doesn't have a bored countersunk hole. |
| F1 | Verify with customer. Rear Spring Mounts do not have to be ordered in pairs. |
