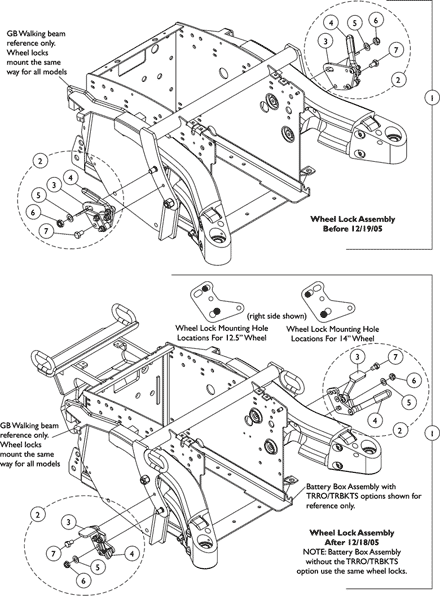

Wheel Lock Assembly - All Models

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1117252

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Wheel Lock Assembly, TDX - Right	1	1
3	NLA - Wheel Lock Assembly, TDX - Left	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
6	Locknut, Low Profile (3/8-16)	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2

Kit, Wheel Lock Assembly w/ Mounting Hardware TDX

N/A

A ,B

Create/add to Wishlist

1139899

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Wheel Lock Assembly - Right	1	1
3	Wheel Lock Assembly - Left	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
6	Locknut, Low Profile (3/8-16)	1	2
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	2

NLA - Kit, Wheel Lock Assembly w/ Mounting Hardware TDX

A ,C

Create/add to Wishlist

1140252

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Wheel Lock Assembly, TDX - Right	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1

Kit, Wheel Lock Assembly w/ Hardware TDX - Right

N/A

A ,B

Create/add to Wishlist

1140253

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	NLA - Wheel Lock Assembly, TDX - Left	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1

Kit, Wheel Lock Assembly w/ Hardware TDX - Left

N/A

A ,B

Create/add to Wishlist

1140254

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Wheel Lock Assembly - Right	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1

NLA - Kit, Wheel Lock Assembly w/ Hardware TDX - Right

N/A

A ,C

Create/add to Wishlist

1140255

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Wheel Lock Assembly - Left	1	1
5	Washer, Flat (3/8 x 11/16 x 1/16")	1	1
6	Locknut, Low Profile (3/8-16)	1	1
7	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1

NLA - Wheel Lock Assembly w/ Hardware TDX - Left

N/A

A ,C

Create/add to Wishlist

1127688

Package, Plastic Tip, Black

$18.00

Create/add to Wishlist

1130584

Package, Cap, Brake Lever End, Black

$30.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes the wheel lock tip with items 3 and 5-7
B	Before 12/19/05. No Longer Available, see item 1 and order a pair of wheel Locks part # 1139899 dated after 12/18/05. Wheel Lock Handle before 12/19/06 measures approximately 2" long and after 12/18/06 measures approximately 3" long.
C	After 12/18/05 only.

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
