Accessories - Miscellaneous

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Description	12"-15" Wide	16"-19" Wide	20"-22" Wide	23"-24" Wide
Auto Style Push Button	Note-A 1036527 MSRP: $63.00	1004310 MSRP: $69.10	1034625 MSRP: $63.00	Note-C 1034622- NLA
Airline Style	N/A	TAGTS1034751- NLA	Note-D 1034752- NLA	1034753- NLA
Hook and Loop	N/A	Note-B 1034744 MSRP: $62.00	Note-B 1034745 MSRP: $63.00	Note-B 1034746 MSRP: $63.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	12"-15" wide positioning straps come in rainbow color.
B	Hook and Loop style positioning strap for power chairs is used for chest positioning only
C	For replacement contact The Aftermarket Group (TAG).
D	1034752 Airline Buckle Style is No Longer Available. Use Auto Style part number 1034625 as a replacement.

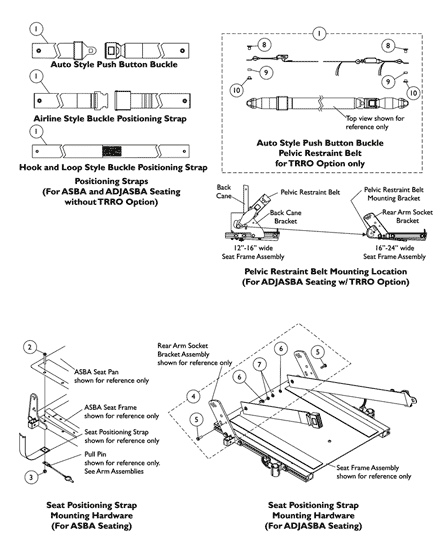

#1 Positioning Straps

N/A

Create/add to Wishlist

See Chart

Added to Cart

Description		12"-16" Wide		16"-24" Wide
Auto Style Push Button		1134475- NLA		Note-A 1134476

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Includes the Pelvic Restraint Belt and items 8-10

#1 Pelvic Restraint Belt For TRRO Option Only

N/A

Create/add to Wishlist

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

$8.00

Create/add to Wishlist

1025736

Locknut (1/4-20)

$7.20

Create/add to Wishlist

1124385

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2

Kit, Seat Positioning Strap Mounting Hardware (both LT & RT sides)

$16.00

Create/add to Wishlist

1134055

NLA - Screw, Hex Head (3/8-24 x 5/8")

N/A

Create/add to Wishlist

1134054

NLA - Bushing, Nylon (1/2 x 9/16 x 9/32")

N/A

Create/add to Wishlist

1134056

NLA - Nut, Barrel (3/8-24)

N/A

Create/add to Wishlist

40176X010

NLA - Pump, Tire

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 5-7
B	Not Shown
C	Before ordering a replacement Pelvic Restraint Belt for TRRO Option, Please read the information provided on page titled "TRRO and TRBKTS Option Clarification Reference" page

Catalog Literature

Parts Books for TDX®3 TDX®3 SE TDX®4 TDX®5
