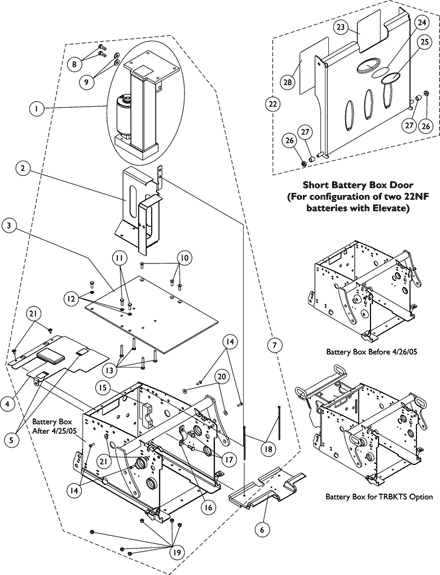

Battery Box Hardware - Door Assembly - Elevate Actuator - Formula Elevate ASBA - Conventional & Contoura Seating

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1122258

NLA - Elevating Actuator Assembly

N/A

Create/add to Wishlist

1124653

NLA - Bracket, Elevate, Black

N/A

Create/add to Wishlist

1124670

Plate, Battery Box Bottom

Create/add to Wishlist

1124721

NLA - Shroud w/ Decals, Elevate, Battery Box

N/A

Create/add to Wishlist

1079203

Decal, Warning Pinch Point

$7.00

Create/add to Wishlist

1124668

NLA - Shroud, Front Battery Box

N/A

Create/add to Wishlist

1125739

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	2
9	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
10	Screw, Socket Flat Head (1/4-20 x 3/4")	1	3
11	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	3
12	Washer (1/4 x 1/2 x 1/16")	1	3
13	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
14	Screw, Phillips Pan Head (#10-32 x 5/8")	1	4
15	NLA - Bracket, Upper Seat, Front, Black	1	1
16	NLA - Bracket, Lower Seat, Front, Black	1	1
17	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
18	NLA - Package, Tie Wrap (5-5/8" L)	1	2
19	Locknut (1/4-20)	1	6
20	Washer, Flat (3/16 x 5/8 x 1/16")	1	4
21	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
8	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	2
9	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
10	Screw, Socket Flat Head (1/4-20 x 3/4")	1	3
11	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	3
12	Washer (1/4 x 1/2 x 1/16")	1	3
13	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
14	Screw, Phillips Pan Head (#10-32 x 5/8")	1	4
15	NLA - Bracket, Upper Seat, Front, Black	1	1
16	NLA - Bracket, Lower Seat, Front, Black	1	1
17	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
18	NLA - Package, Tie Wrap (5-5/8" L)	1	2
19	Locknut (1/4-20)	1	6
20	Washer, Flat (3/16 x 5/8 x 1/16")	1	4
21	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
21	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
8	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	2
9	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
10	Screw, Socket Flat Head (1/4-20 x 3/4")	1	3
11	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	3
12	Washer (1/4 x 1/2 x 1/16")	1	3
13	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
14	Screw, Phillips Pan Head (#10-32 x 5/8")	1	4
15	NLA - Bracket, Upper Seat, Front, Black	1	1
16	NLA - Bracket, Lower Seat, Front, Black	1	1
17	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
18	NLA - Package, Tie Wrap (5-5/8" L)	1	2
19	Locknut (1/4-20)	1	6
20	Washer, Flat (3/16 x 5/8 x 1/16")	1	4

NLA - Kit, Battery Box Assembly Hardware Elevate

Create/add to Wishlist

1125776

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
23	NLA - Label, 22NF Terminal Configuration Warning	1	1
24	NLA - Decal, Blank Logo	1	1
25	NLA - Decal, Invacare Medallion - Large	1	1
26	Locknut (1/4-20)	1	2
27	NLA - Sleeve, Door Pivot	1	2
28	NLA - Decal, Warning, Battery Install	1	1
23	NLA - Label, 22NF Terminal Configuration Warning	1	1
24	NLA - Decal, Blank Logo	1	1
25	NLA - Decal, Invacare Medallion - Large	1	1
26	Locknut (1/4-20)	1	2
27	NLA - Sleeve, Door Pivot	1	2
28	NLA - Decal, Warning, Battery Install	1	1
23	NLA - Label, 22NF Terminal Configuration Warning	1	1
24	NLA - Decal, Blank Logo	1	1
25	NLA - Decal, Invacare Medallion - Large	1	1
26	Locknut (1/4-20)	1	2
27	NLA - Sleeve, Door Pivot	1	2
28	NLA - Decal, Warning, Battery Install	1	1

Kit, Battery Box Door Elevate Assembly, 22NF Short

B ,C

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 8-21
B	Includes items 23-28
C	Blank Logo Decal is no longer available and no longer required for item number 25 Invacare Medallion Decal.
D	Battery Box Before 4/26/05
E	Battery Box After 4/25/05
