Guards - Rigid Side

Print this page

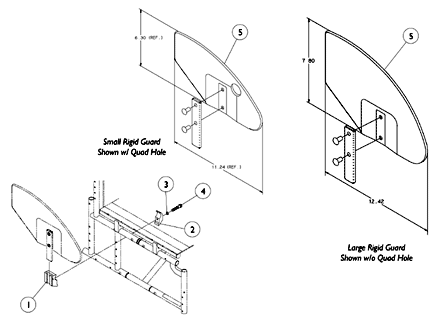

Rigid Side Guards

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1032249	Clamp, Half, Threaded	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1018692	NLA - Clamp, Half, Non-Threaded	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1013971	Washer, Nylon (1/4 x 7/16 x 5/64")	1	1	$2.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1003545	Screw, Socket Head (1/4-20 x 1-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036346	Guard, Side, Small w/o Quad Hole - Right (6-1/4" H x 11-1/4" D)	1	1	$66.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036347	Guard, Side, Small w/o Quad Hole - Left (6-1/4" H x 11-1/4" D)	1	1	$66.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036407	Guard, Side, Small w/ Quad Hole - Right (6-1/4" H x 11-1/4" D)	1	1	$58.10		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036408	Guard, Side, Small w/ Quad Hole - Left (6-1/4" H x 11-1/4" D)	1	1	$58.10		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036344	Guard, Side, Large w/o Quad Hole - Right (7-3/4" H x 12-3/8" D)	1	1	$66.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036345	Guard, Side, Large w/o Quad Hole - Left (7-3/4" H x 12-3/8" D)	1	1	$66.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036405	Guard, Side, Large w/ Quad Hole - Right (7-3/4" H x 12-3/8" D)	1	1	$58.10		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1036406	Guard, Side, Large w/ Quad Hole - Left (7-3/4" H x 12-3/8" D)	1	1	$58.10		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1036342	Kit, Side Guard Hardware (Pair)	2	1	$61.90	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Consists of items 1-4

Catalog Literature

Parts Books for A-6
