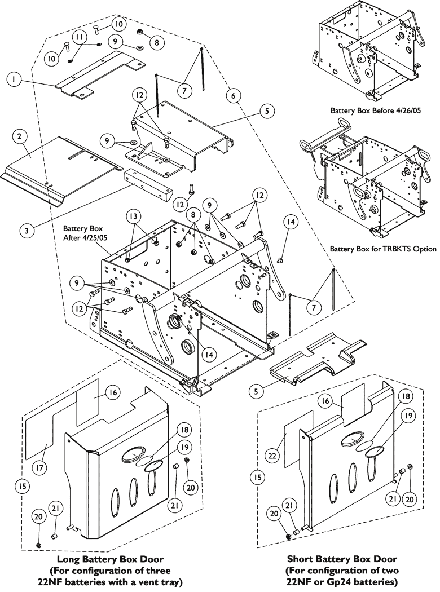

Battery Box Hdwr. & Door Asbly. - Non-Elevate Conv. & Contoura Seating

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1128731

NLA - Bracket, Frame Stiffener, Black

N/A

Create/add to Wishlist

1124725

NLA - Shroud, Battery Box Isolation

N/A

Create/add to Wishlist

1125639

NLA - Block, Side Support

N/A

Create/add to Wishlist

1124668

NLA - Shroud, Front Battery Box

N/A

Create/add to Wishlist

1128729

NLA - Bracket, Seat Frame Mounting, Black LOW 0° = 18" STF; 5° = (19-3/4" STF For 16-19" Deep) or (21-1/4" STF For 20-22" Deep)

N/A

Create/add to Wishlist

1128730

NLA - Bracket, Seat Frame Mounting, Black TALL 0° = 19-1/4" STF; 5° = (21" STF For 16-19" Deep) or (21-1/4" STF For 20-22" Deep)

N/A

Create/add to Wishlist

1125738

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Tie Wrap (5-5/8" L)	1	4
8	Locknut (5/16-18)	1	4
9	Washer, Steel (5/16 x 3/4 x 1/16")	1	9
10	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
11	Washer (1/4 x 1/2 x 1/16")	1	2
12	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	9
13	Locknut (1/4-20)	1	2
14	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
7	Tie Wrap (5-5/8" L)	1	4
8	Locknut (5/16-18)	1	4
9	Washer, Steel (5/16 x 3/4 x 1/16")	1	9
10	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
11	Washer (1/4 x 1/2 x 1/16")	1	2
12	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	9
13	Locknut (1/4-20)	1	2
14	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2

NLA - Kit, Non-Elevate Battery Box Assembly Hardware

Create/add to Wishlist

1113357

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Decal, Blank Logo	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
12	NLA - Label, 22NF Battery Install/Remove	1	1
6	NLA - Label, 22NF Terminal Configuration Warning	1	1
16	NLA - Label, 22NF Terminal Configuration Warning	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
21	NLA - Sleeve, Door Pivot	1	2
22	NLA - Label, 22NF Battery Install/Remove	1	1
6	NLA - Label, 22NF Terminal Configuration Warning	1	1
8	NLA - Decal, Blank Logo	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
12	NLA - Label, 22NF Battery Install/Remove	1	1
8	NLA - Label, 22NF Terminal Configuration Warning	1	1
9	NLA - Decal, Blank Logo	1	1
10	NLA - Decal, Invacare Medallion - Large	1	1
11	Locknut (1/4-20)	1	2
12	NLA - Sleeve, Door Pivot	1	2
13	NLA - Label, 22NF Battery Install/Remove	1	1
8	NLA - Label, 22NF Terminal Configuration Warning	1	1
9	NLA - Decal, Blank Logo	1	1
10	NLA - Decal, Invacare Medallion - Large	1	1
11	Locknut (1/4-20)	1	2
12	NLA - Sleeve, Door Pivot	1	2
13	NLA - Label, 22NF Battery Install/Remove	1	1
16	NLA - Label, 22NF Terminal Configuration Warning	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
21	NLA - Sleeve, Door Pivot	1	2
22	NLA - Label, 22NF Battery Install/Remove	1	1

NLA - Kit, Battery Box Door Assembly, 22NF Short

B ,D ,G

Create/add to Wishlist

1113127

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	NLA - Label, Terminal Configuration Warning, GP24	1	1
8	NLA - Decal, Blank Logo	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
12	Label, Battery Install/Remove, GP24	1	1
16	NLA - Label, Terminal Configuration Warning, GP24	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
21	NLA - Sleeve, Door Pivot	1	2
22	Label, Battery Install/Remove, GP24	1	1
8	NLA - Decal, Blank Logo	1	1
6	NLA - Label, Terminal Configuration Warning, GP24	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
12	Label, Battery Install/Remove, GP24	1	1
8	NLA - Label, Terminal Configuration Warning, GP24	1	1
9	NLA - Decal, Blank Logo	1	1
10	NLA - Decal, Invacare Medallion - Large	1	1
11	Locknut (1/4-20)	1	2
12	NLA - Sleeve, Door Pivot	1	2
13	Label, Battery Install/Remove, GP24	1	1
8	NLA - Label, Terminal Configuration Warning, GP24	1	1
9	NLA - Decal, Blank Logo	1	1
10	NLA - Decal, Invacare Medallion - Large	1	1
11	Locknut (1/4-20)	1	2
12	NLA - Sleeve, Door Pivot	1	2
13	Label, Battery Install/Remove, GP24	1	1
16	NLA - Label, Terminal Configuration Warning, GP24	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
21	NLA - Sleeve, Door Pivot	1	2
22	Label, Battery Install/Remove, GP24	1	1

NLA - Kit, Battery Box Door Assembly, GP24 Short

N/A

B ,D

Create/add to Wishlist

1121072

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	NLA - Label, 22NF Terminal Configuration Warning	1	1
7	NLA - Label, 3 Battery Configuration Warning	1	1
8	NLA - Decal, Blank Logo	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
16	NLA - Label, 22NF Terminal Configuration Warning	1	1
17	NLA - Label, 3 Battery Configuration Warning	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
6	NLA - Label, 22NF Terminal Configuration Warning	1	1
7	NLA - Label, 3 Battery Configuration Warning	1	1
8	NLA - Decal, Blank Logo	1	1
9	NLA - Decal, Invacare Medallion - Large	1	1
10	Locknut (1/4-20)	1	2
11	NLA - Sleeve, Door Pivot	1	2
21	NLA - Sleeve, Door Pivot	1	2
16	NLA - Label, 22NF Terminal Configuration Warning	1	1
17	NLA - Label, 3 Battery Configuration Warning	1	1
18	NLA - Decal, Blank Logo	1	1
19	NLA - Decal, Invacare Medallion - Large	1	1
20	Locknut (1/4-20)	1	2
21	NLA - Sleeve, Door Pivot	1	2

Kit, Battery Box Door Assembly, 22NF Long (For Vent)

N/A

C ,D

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Battery Box Door along w/ Items 7-14.
B	Includes Battery Box Door along w/ Items 16 and 18-22.
C	Includes Battery Box Door along w/ Items 16-21.
D	Blank Logo Decal is no longer available and no longer required for item number 19 Invacare Medallion Decal.
E	Chairs manufactured before 8/30/04 must have items 1 and 5 ordered together in order for the mounting holes to line up properly
F	No longer available as a service part.
G	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Formula™ TRE Powered Seating
