EQUIPMENT US Site

1

See Chart

Added to Cart

Chair Width		Part Number		Seat/Chest Positioning Strap w/ Auto Style Buckle Length (Eyelet to Eyelet)
16" - 19" Wide		1004310 MSRP: $69.10		48" L
20" Wide		1034625 MSRP: $63.00		61" L

Create/add to Wishlist

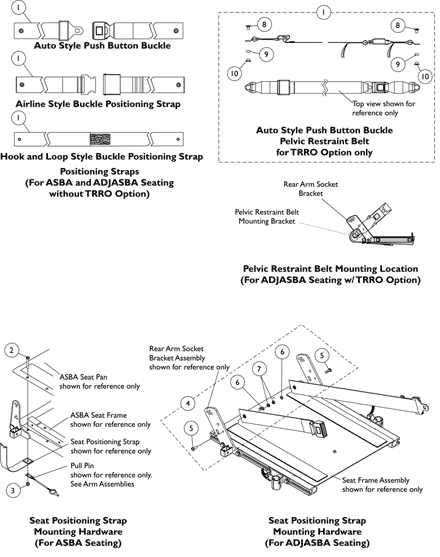

#1 Auto Style Push Button Positioning Strap

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Chair Width		Part Number		Seat/Chest Positioning Strap w/ Airline Style Buckle Length (Eyelet to Eyelet)
16" - 19" Wide		TAGTS1034751- NLA		46" L
20" Wide		Note-A 1034752- NLA		61" L

Create/add to Wishlist

See chart-note

#1 Airline Style Positioning Strap

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Chair Width		Part Number		Seat/Chest Positioning Strap w/ Hook and Loop Style Buckle Length (Eyelet to Eyelet)
16" - 19" Wide		Note-A 1034744 MSRP: $62.00		45" L
20" Wide		Note-A 1034745 MSRP: $63.00		61" L

Create/add to Wishlist

See chart-note

#1 Hook and Loop Style Positioning Strap

N/A

Create/add to Wishlist

1

See Chart

Added to Cart

Chair Width		Part Number		Pelvic Restraint Belt w/ Auto Style Buckle Length For TRRO Option Only (Bushing Hole to Bushing Hole Length)
16" - 20" Wide		Note-A 1134475- NLA		37" L

Create/add to Wishlist

See chart-note

#1 Pelvic Restraint Belt w/ Auto Style Buckle (TRRO Option Only)

N/A

C

Create/add to Wishlist

2

1037610

Screw, Hex Head (1/4-20 x 1-5/8")

1

2

$8.00

Create/add to Wishlist

3

1025736

Locknut (1/4-20)

1

2

$7.20

Create/add to Wishlist

4

1124385

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
5	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
7	Washer (1/4 x 23/32 x 1/16")	1	2
8	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
5	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
6	Washer (1/4 x 1/2 x 1/16")	1	2
7	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	Locknut (1/4-20)	1	2
2	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
3	Washer (1/4 x 1/2 x 1/16")	1	2
4	Locknut (1/4-20)	1	2

Kit, Seat Positioning Strap Mounting Hardware (both LT & RT sides)

1

$16.00

A

Create/add to Wishlist

8

1134055

NLA - Screw, Hex Head (3/8-24 x 5/8")

1

2

N/A

Create/add to Wishlist

9

1134054

NLA - Bushing, Nylon (1/2 x 9/16 x 9/32")

1

2

N/A

Create/add to Wishlist

10

1134056

NLA - Nut, Barrel (3/8-24)

1

2

N/A

Create/add to Wishlist

40176X010

NLA - Pump, Tire

1

N/A

B

Note Code	Definition
A	Includes items 5-7
B	Not Shown
C	Before ordering a replacement Pelvic Restraint Belt for TRRO Option, Please read the information provided on page titled "TRRO and TRBKTS Option Clarification Reference" page
