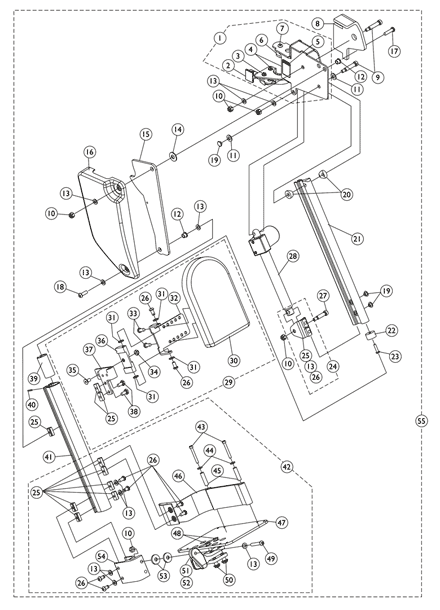

Front Riggings - Power Articulating Legrests - ELRPW/ELRPW22

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1125436	Legrest Support Assembly, Sector, Black - Right	1	1	$177.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1125437	Legrest Support Assembly, Sector, Black - Left	1	1	$177.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025454	Housing, Latch - Right	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1025455	Housing, Latch - Left	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1017423	Screw, Slotted Hex Washer Head w/ Patch (#10-32 x 1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025451	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1079203	Decal, Warning Pinch Point	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1099685	Plug, Pivot	1	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1091870	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1125433	Pad, Cushion - Right	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1125434	Pad, Cushion - Left	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1025351	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-1/4", 1/4-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1025736	Locknut (1/4-20)	1	5	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1099671	Bearing, Flange (1/4 x 5/16" Long)	1	2	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1026907	Washer (1/4 x 1/2 x 1/16")	1	12	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1012371	Washer, Nylon (3/8 x 7/8 x 1/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1125424	Plate, Pivot	1	1	$37.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1110746	Cover, Legrest Support - Right	1	1	$143.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1110747	Cover, Legrest Support - Left	1	1	$143.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1009837	Screw, Socket Button Head (1/4-20 x 1")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1091870	Screw, Socket Button Head w/ Patch (1/4-20 x 3/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1101883	Glide	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	0175600	Spacer, Coved (5/16 x 3/4 x 3/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1110741	Extrusion, Internal Slide (14-1/4" L)	1	1	$98.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1099702	Glide, Internal	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1018846	Screw, Socket Button Head (#10-24 x 3/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1110972	Actuator Motor Bracket Assembly	1	1	$26.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1082699	T-Nut (1/4-20)	1	11	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1100023	Screw, Button Head w/ Patch (1/4-20 x 1/2")	1	10	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1087417	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1", 1/4-20)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1110724	Motor, Actuator - Right	1	1	$1,270.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1110725	Motor, Actuator - Left	1	1	$1,270.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	8881110977	Calf Pad Assembly with Hardware - Right	1	1	$74.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	8881111715	Calf Pad Assembly with Hardware - Left	1	1	$74.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	88804529X003	Pad, Legrest, Vinyl - Right	1	1	$48.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	88804529X004	Pad, Legrest, Vinyl - Left	1	1	$48.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1110748	NLA - Hardware, Calf Pad Bracket	1	1	N/A	D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	4	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	1099700	NLA - Bracket, Calf Pad Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	1029157	Screw, Phillips Pan Head w/Patch (#10-32 x 7/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	1025765	Locknut (1/4-28)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
35	1074191	NLA - Screw, Socket Flat Head (1/4-28 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	1099690	NLA - Block, Calf Pad	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	1111716	Bracket, Calf Pad Block Mounting, Black - Right	1	1	$52.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	1111717	Bracket, Calf Pad Block Mounting, Black - Left	1	1	$52.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	1078214	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
39	1110742	Bushing, Sleeve	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
40	1079151	NLA - Pin, Roll (5/64 x 5/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
41	1121026	Extrusion, External (12-1/2" L) (ELRPW22 Before 7/22/04) and (ELRPW20 After 7/21/04)	1	1	$96.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
41	1125435	Extrusion, External - ELRPW22 (14-1/2" L)	1	1	$102.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
42	1101114	Footplate Assembly, Adjustable Angle, Black - Right (5-1/4" W)	1	1	$74.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
42	1101115	Footplate Assembly, Adjustable Angle, Black - Left (5-1/4" W)	1	1	$74.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
43	1023965	NLA - Screw, Socket Head (#10-32 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
44	1028516	Washer, Steel (3/16 x 7/16 x 1/16")	1	2	$3.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
45	1015629	NLA - Bushing	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
46	1101268	Heel Loop Assembly - Right	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
46	1101269	Heel Loop Assembly - Left	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
47	1060427	NLA - Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
48	1029545	Screw, Socket Flat Head (1/4-20 x 3/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
49	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
50	1082686	Nut, Barrel, Hex Head (1/4-20 x 11/16")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
51	1052102	Hinge, Footplate - Right	1	1	$57.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
51	1052103	Hinge, Footplate - Left	1	1	$57.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
52	1048816	Screw, Nylon Adjustment (1/2-13 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
53	1016301	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
54	1099678	Extrusion, Footplate Adapter	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
55	1126091	Legrest Assembly, Power Articulating, Sector, Black (13 - 20" Range) - Right	1	1	$2,132.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
55	1126092	Legrest Assembly, Power Articulating, Sector, Black (13 - 20" Range) - Left	1	1	$2,132.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
55	1126093	Legrest Assembly, Power Articulating, Sector, Black (15 - 22" Range) - Right	1	1	$2,132.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
55	1126094	Legrest Assembly, Power Articulating, Sector, Black (15 - 22" Range) - Left	1	1	$2,132.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-7
B	Includes items 13, 25 and 26
C	Includes Items 25, 26 and 30-38
D	Includes Items 25, 26, 31-36, 38
E	Includes Items 10, 13, 25, 26 and 43-54
F	Not Shown
G	Includes items 1, 8-23, 24, 27, 28, 29, 39-41 and 42

Catalog Literature

Parts Books for Formula™ TRE Powered Seating Front Riggings & MK5 Electronics
