Electronics - MK5 TRECM, Shroud Cover, Mercury Free Switches, Conv. Tilt & Tilt w/ BPO Option (4/15/05-10/19/05)

Print this page

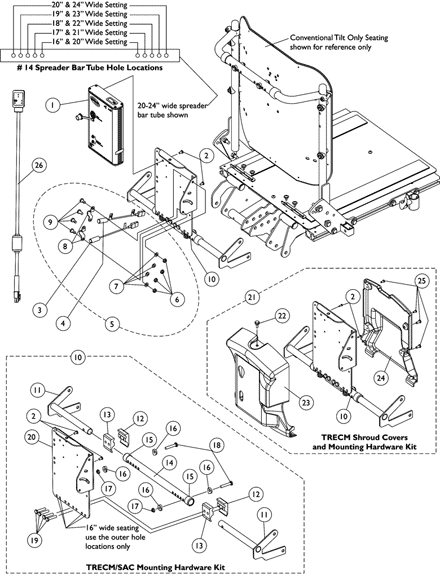

MK5 TRECM, Shroud Cover, Mercury Free Switches and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1123263

NLA - Controller, MK5 TRECM

N/A

Create/add to Wishlist

1079316

NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")

N/A

Create/add to Wishlist

1123268

NLA - Harness, Tilt Mercury Free Ball Switch

N/A

Create/add to Wishlist

1080634

NLA - Harness, Drive Lockout Mercury Free Ball Switch

N/A

Create/add to Wishlist

1125730

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Locknut (1/4-20)	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
14	NLA - Bracket, Switch Mounting, Black	1	2
16	Locknut (1/4-20)	1	4
14	Washer (1/4 x 1/2 x 1/16")	1	4
15	Locknut (1/4-20)	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
12	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
14	Locknut (1/4-20)	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
9	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
7	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
13	Washer (1/4 x 1/2 x 1/16")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
6	Locknut (1/4-20)	1	4
10	Locknut (1/4-20)	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
15	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2

NLA - Kit, Drive Lockout/Recline Switch Mounting Hardware

N/A

Create/add to Wishlist

1128362

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Bracket, Spreader Bar, Black - Left	1	1
12	NLA - Half Clamp, Threaded Holes	1	2
15	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
19	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
13	Tube, Spreader Bar, Black (16 - 20" W)	1	1
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
10	Bracket, Spreader Bar, Black - Left	1	1
11	NLA - Half Clamp, Threaded Holes	1	2
12	Half Clamp, Non-Threaded Holes	1	2
2	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
16	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
17	Locknut (1/4-20)	1	2
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
13	Half Clamp, Non-Threaded Holes	1	2
15	Collar, Anti-Rattle (7/8")	1	2
2	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
10	Bracket, Spreader Bar, Black - Right	1	1
14	Collar, Anti-Rattle (7/8")	1	2
11	Bracket, Spreader Bar, Black - Right	1	1
14	Tube, Spreader Bar, Black (16 - 20" W)	1	1
18	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
19	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1
18	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2
20	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1
16	Locknut (1/4-20)	1	2
17	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2

NLA - Kit, TRECM/SAC Mounting Hardware 16-20" Wide For Conventional Tilt Only

N/A

B ,D

Create/add to Wishlist

1128361

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2
14	Collar, Anti-Rattle (7/8")	1	2
15	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	NLA - Half Clamp, Threaded Holes	1	2
11	NLA - Half Clamp, Threaded Holes	1	2
12	Half Clamp, Non-Threaded Holes	1	2
18	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
2	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
11	Bracket, Spreader Bar, Black - Left	1	1
10	Bracket, Spreader Bar, Black - Left	1	1
13	Tube, Spreader Bar, Black (20 - 24" W)	1	1
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
17	Locknut (1/4-20)	1	2
14	Tube, Spreader Bar, Black (20 - 24" W)	1	1
2	Screw, Phillips Pan Head (#4-40 x 3/8")	1	4
16	Locknut (1/4-20)	1	2
13	Half Clamp, Non-Threaded Holes	1	2
18	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
11	Bracket, Spreader Bar, Black - Right	1	1
15	Collar, Anti-Rattle (7/8")	1	2
16	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
19	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
20	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1
10	Bracket, Spreader Bar, Black - Right	1	1
19	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1

NLA - Kit, TRECM/SAC Mounting Hardware 20-24" Wide For Conventional Tilt Only

N/A

B ,D

Create/add to Wishlist

1128364

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Half Clamp, Non-Threaded Holes	1	2
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
11	Bracket, Spreader Bar, Black - Left	1	1
24	Shroud, Back	1	1
11	Bracket, Spreader Bar, Black - Right	1	1
20	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1
12	NLA - Half Clamp, Threaded Holes	1	2
18	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2
19	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
15	Collar, Anti-Rattle (7/8")	1	2
16	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
22	Screw, Thumb (#10-32 x 1/2")	1	1
23	NLA - Shroud, Cover	1	1
14	Tube, Spreader Bar, Black (16 - 20" W)	1	1
17	Locknut (1/4-20)	1	2
25	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4

Kit, TRECM Shrouds and Mounting Hardware 16-20" Wide For Conventional Tilt Only

Create/add to Wishlist

1128363

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Half Clamp, Non-Threaded Holes	1	2
25	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
2	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
14	Tube, Spreader Bar, Black (20 - 24" W)	1	1
17	Locknut (1/4-20)	1	2
20	NLA - TRECM/SAC/TAC/MK6i Connector Shroud Mounting Tray Assembly	1	1
11	Bracket, Spreader Bar, Black - Right	1	1
11	Bracket, Spreader Bar, Black - Left	1	1
22	Screw, Thumb (#10-32 x 1/2")	1	1
23	NLA - Shroud, Cover	1	1
12	NLA - Half Clamp, Threaded Holes	1	2
19	Screw, Hex Head (1/4-20 x 1-1/4")	1	4
24	Shroud, Back	1	1
15	Collar, Anti-Rattle (7/8")	1	2
18	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	2
16	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4

Kit, TRECM Shrouds and Mounting Hardware 20-24" Wide For Conventional Tilt Only

Create/add to Wishlist

1119418

Cable, Auxiliary Power

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 6-10
B	Includes items 2 and 11-20
C	Includes items 2, 11-20 and 22-25
D	Item 2 includes both attaching hardware screws for the MK5 TRECM and the MK5 SAC controller. Part number 1052041 screw is used to assemble a MK5 SAC to item 20 Mounting Tray Assembly.

Catalog Literature

Parts Books for Formula™ TRE Powered Seating Front Riggings & MK5 Electronics
