Electronics - MK5 TRECM & Mercury Free Switches, Conventional Tilt & Tilt w/ BPO Option (10/20/05-1/25/06)

Print this page

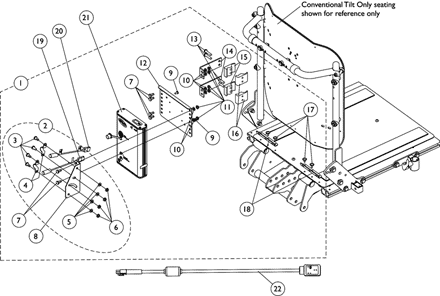

MK5 TRECM, Mercury Free Switches and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1128359

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Locknut (1/4-20)	1	6
12	NLA - Bracket, Controller Mounting, Black	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	4
17	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
8	Bracket, Mercury Switch Mounting, Black	1	1
9	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
17	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
8	Bracket, Mercury Switch Mounting, Black	1	1
9	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
13	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	4
14	NLA - Bracket, Standoff, Black	1	2
17	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
10	Washer (1/4 x 1/2 x 1/16")	1	6
16	NLA - Half Clamp, Threaded Holes	1	2
13	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	4
18	NLA - Bracket, Seat Pan Wiring, Black	1	2
18	NLA - Bracket, Seat Pan Wiring, Black	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
11	Locknut (1/4-20)	1	6
8	Bracket, Mercury Switch Mounting, Black	1	1
12	NLA - Bracket, Controller Mounting, Black	1	1
18	NLA - Bracket, Seat Pan Wiring, Black	1	2
15	Half Clamp, Non-Threaded Holes	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
6	Locknut (1/4-20)	1	4
9	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
6	Locknut (1/4-20)	1	4
11	Locknut (1/4-20)	1	6
12	NLA - Bracket, Controller Mounting, Black	1	1
14	NLA - Bracket, Standoff, Black	1	2
15	Half Clamp, Non-Threaded Holes	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
16	NLA - Half Clamp, Threaded Holes	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
14	NLA - Bracket, Standoff, Black	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	6
16	NLA - Half Clamp, Threaded Holes	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	6
10	Washer (1/4 x 1/2 x 1/16")	1	6
15	Half Clamp, Non-Threaded Holes	1	2

NLA - Kit, TRECM/TAC and Switch Mounting Hardware

N/A

Create/add to Wishlist

1080634

NLA - Harness, Drive Lockout Mercury Free Ball Switch

N/A

Create/add to Wishlist

1123268

NLA - Harness, Tilt Mercury Free Ball Switch

N/A

Create/add to Wishlist

1123263

NLA - Controller, MK5 TRECM

N/A

Create/add to Wishlist

1125730

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Locknut (1/4-20)	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
14	NLA - Bracket, Switch Mounting, Black	1	2
16	Locknut (1/4-20)	1	4
14	Washer (1/4 x 1/2 x 1/16")	1	4
15	Locknut (1/4-20)	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
12	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
14	Locknut (1/4-20)	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
9	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
7	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
13	Washer (1/4 x 1/2 x 1/16")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
6	Locknut (1/4-20)	1	4
10	Locknut (1/4-20)	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
15	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2

NLA - Kit, Drive Lockout/Recline Switch Mounting Hardware

N/A

Create/add to Wishlist

1119418

Cable, Auxiliary Power

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-18
B	Includes items 3-6

Catalog Literature

Parts Books for Formula™ TRE Powered Seating Front Riggings & MK5 Electronics
