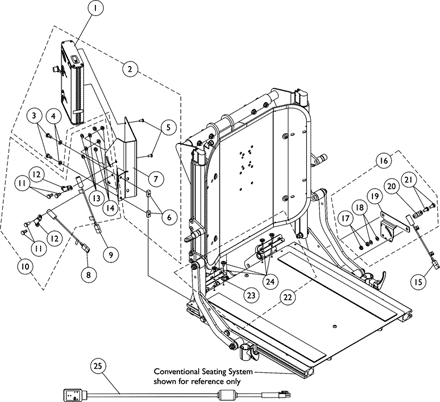

Electronics - MK5 TRECM & Mercury Free Switches, Conv. Recline & Tilt/Recline (Before 5/19/05)

Print this page

Electronics, MK5 TRECM & Mercury Free Switches, Conv. Recline and Tilt/Rec

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1123263

NLA - Controller, MK5 TRECM

N/A

Create/add to Wishlist

1125729

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Washer (1/4 x 1/2 x 1/16")	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
6	T-Nut (1/4-20)	1	2
5	NLA - Screw, Phillips Pan Head w/ Patch (#10-32 x 3/8")	1	2
7	Bracket, TRECM Controller Mounting, Black	1	1

NLA - Kit, MK5 TRECM Mounting Hardware For Conventional Seating w/ Extruded Canes

Create/add to Wishlist

1080634

NLA - Harness, Drive Lockout Mercury Free Ball Switch

N/A

Create/add to Wishlist

1123267

NLA - Harness, Recline Mercury Free Ball Switch

N/A

Create/add to Wishlist

1125730

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Locknut (1/4-20)	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2
4	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
9	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
14	NLA - Bracket, Switch Mounting, Black	1	2
16	Locknut (1/4-20)	1	4
14	Washer (1/4 x 1/2 x 1/16")	1	4
15	Locknut (1/4-20)	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
12	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
13	NLA - Bracket, Switch Mounting, Black	1	2
12	NLA - Bracket, Switch Mounting, Black	1	2
14	Locknut (1/4-20)	1	4
10	Washer (1/4 x 1/2 x 1/16")	1	4
8	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
9	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
7	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (1/4-20)	1	4
8	NLA - Bracket, Switch Mounting, Black	1	2
3	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
13	Washer (1/4 x 1/2 x 1/16")	1	4
13	Washer (1/4 x 1/2 x 1/16")	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
6	Locknut (1/4-20)	1	4
10	Locknut (1/4-20)	1	4
4	NLA - Bracket, Switch Mounting, Black	1	2
15	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Bracket, Switch Mounting, Black	1	2

NLA - Kit, Drive Lockout/Recline Switch Mounting Hardware

N/A

Create/add to Wishlist

1123268

NLA - Harness, Tilt Mercury Free Ball Switch

N/A

Create/add to Wishlist

1125731

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
19	Locknut (1/4-20)	1	2
21	NLA - Bracket, Mercury Switch Mounting, Black	1	1
6	NLA - Bracket, Switch Mounting, Black	1	1
7	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
20	Washer (1/4 x 1/2 x 1/16")	1	2
20	NLA - Bracket, Switch Mounting, Black	1	1
21	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
3	Locknut (1/4-20)	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	2
5	NLA - Bracket, Mercury Switch Mounting, Black	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	2
23	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2
19	NLA - Bracket, Mercury Switch Mounting, Black	1	1
17	Locknut (1/4-20)	1	2
22	NLA - Bracket, Switch Mounting, Black	1	1

NLA - Kit, Tilt Mercury Switch Mounting Hardware

N/A

Create/add to Wishlist

1133130

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
23	NLA - Bracket, Seat Pan Wiring, Black	1	2
26	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
18	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
17	NLA - Bracket, Seat Pan Wiring, Black	1	2
24	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	4
25	NLA - Bracket, Seat Pan Wiring, Black	1	2

NLA - Kit, Seat Pan Wiring Brackets w/ Hardware

N/A

Create/add to Wishlist

1119418

Cable, Auxiliary Power

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-9
B	Includes items 11-14
C	Includes items 17-21
D	Includes items 23 and 24

Catalog Literature

Parts Books for Formula™ TRE Powered Seating Front Riggings & MK5 Electronics
