Battery Boxes & Trays - R2 jr. (14" Wide)

Print this page

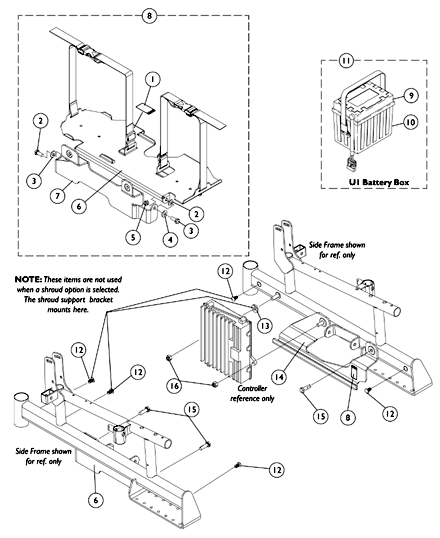

Battery Boxes and Trays

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1079203	Decal, Warning Pinch Point	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026032	Washer, Nylon (11/32 x 11/16 x 1/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1086166	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1074133	Washer, Steel (5/16 x 3/4 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1028769	Locknut (5/16-18)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1090275	NLA - Tray, Battery with Buckle and Warning Decal	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1086160	NLA - Bracket, Pivot, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1086167	NLA - Battery Tray Assembly	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1057941	NLA - Battery Box Top Assembly, Dual w/ Single Extended Connector, UI	1	2	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1009268	NLA - Battery Box Bottom Assembly, U1	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1057942	NLA - Battery Box Assembly, Dual w/ Single Extended Connector, UI	1	2	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1058520	NLA - Fastener, Panel Snap-In	1	5	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1090276	Bracket, Pivot with Warning Decal, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1050161	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1026158	Locknut (5/16-18)	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1089385	Fuse, MIDI (Non-G/B & G/B) (80 AMP)	1	2	$29.00	C ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1060318	NLA - Hardware, Battery Terminal, UI Batteries (Pair)	2	1	N/A	E ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 2-7.
B	It is recommended that new terminal hardware be ordered when a new battery box top is ordered.
C	As of 11/05/99 the battery harness fuse changed from a Bussman 60AMP to a MIDI 80AMP fuse. This battery box top is compatible for all chairs manufactured before 11/05/99 and must beordered whenever a replacement Bussman 60AMP fuse is requested.
D	Includes Items 9 and 10.
E	Hardware includes small battery terminal caps (gray and orange), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties, locking tab washers and instruction sheet for two batteries.
F	Not Shown.

Catalog Literature

Parts Books for Storm Series® Ranger II™ Excel™ R2™ jr.
