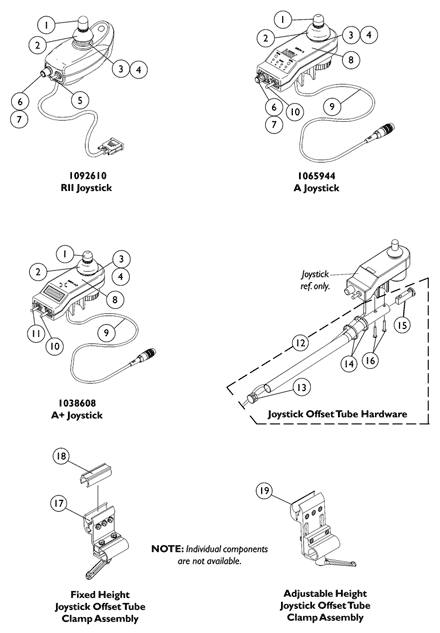

Electronics - MKIV Joysticks and Mounting Hardware (Before 2/15/03)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1040218 | Skirt, Joystick Rubber, Black | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1036764 | NLA - Inductive, Joystick | 1 | 1 | N/A | E ,F |
Create/add to WishlistCreate/add to Wishlist |
3 | 1104397 | NLA - Inductive, Joystick | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
4 | 50000X364 | NLA - Boot, Joystick | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1010042 | NLA - Switch, Toggle SPDT | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
6 | 1040225 | NLA - Potentiometer, Speed | 1 | 1 | N/A | H |
Create/add to WishlistCreate/add to Wishlist |
6 | 1115518 | NLA - Potentiometer, Speed | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
7 | 1025516 | NLA - Knob, Speed Control | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1040190 | NLA - Overlay, Joystick Decal A Joystick | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1036776 | NLA - Overlay, Joystick Decal A+ Joystick | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1036750 | NLA - Cable Assembly | 1 | 1 | N/A | E ,I |
Create/add to WishlistCreate/add to Wishlist |
9 | 1104205 | NLA - Cable Assembly | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
10 | 1040185 | NLA - Switch, On/ Off Momentary | 1 | 1 | N/A | E ,I |
Create/add to WishlistCreate/add to Wishlist |
10 | 1115523 | NLA - Switch, On/ Off Momentary | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
11 | 1040186 | NLA - Switch, Program | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
12 | 1093069 | Kit, 1/2" Offset Joystick Tube with Hardware | 1 | 1 |
$30.00 |
B ,C |
Create/add to WishlistCreate/add to Wishlist |
13 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 1095502 | NLA - Package, Tie Wrap (11-1/2" L) | 10 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1093063 | Spacer, Joystick Tube, Black | 1 | 1 |
$11.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 7930327 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/8") | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1093071 | Clamp, Fixed Height Joystick Tube | 1 | 1 |
$29.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
18 | 1061983 | NLA - Spacer, Plastic Snap Clamp (3/4" I.D. x 2-1/2") | 1 | 1 | N/A | J |
Create/add to WishlistCreate/add to Wishlist |
19 | 1139422 | Clamp, Height Adjustable Joystick Tube (ARM250) | 1 | 1 |
$91.00 |
K |
Create/add to WishlistCreate/add to Wishlist |
1006270 | Extension, Joystick, "T" Style (1560) (4" W x 5-1/2" L) | 1 | 1 |
$126.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
|
1006271 | Extension, Joystick, Straight Style (1561) (1/2" W x 5" L) | 1 | 1 |
$103.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
|
1092610 | NLA - Joystick, RII | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1065944 | NLA - Joystick, "A" | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1038608 | NLA - Joystick, "A+" | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not Shown |
B | Includes items 13-16 |
C | MKIV RII, A, A+, and PSF/PSR |
D | See pictorial for reference. |
E | Item requires soldering |
F | For RII, A+ and (A joystick before 10/01/02) |
G | For A joystick after 9/30/02 and has a non-solder connector |
H | For RII and (A joystick before 10/01/02) |
I | For A+ and (A joystick before 10/01/02) |
J | Spacer allows the half clamps to grip securely around the 3/4" arm tube |
K | Available as an option (ARM250) and can be used to replace a Fixed Height Joystick Clamp. |
